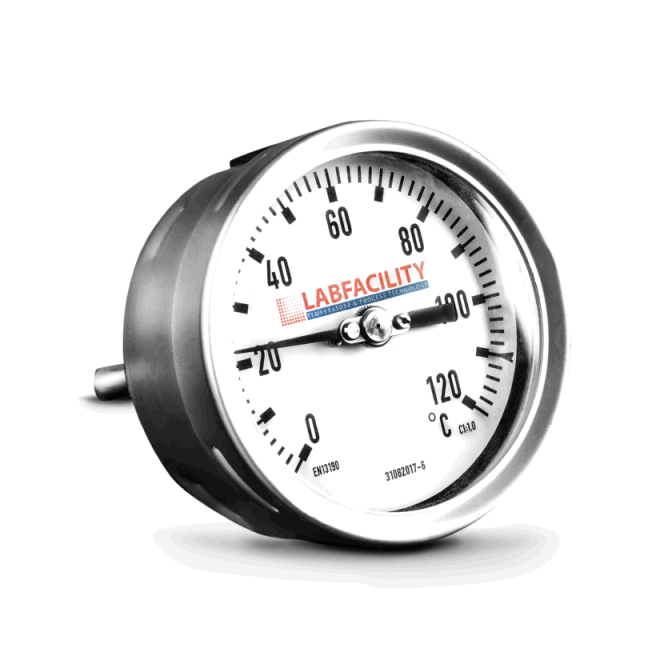

Bi-Metal Thermometer Temperature Gauges - Back Entry Style with 1/2" BSP Pocket
Change Currency
SKU
XE-0700
£186.92
£155.77
**Chemical–Boilers–Ovens–Freezers–Tankers-Food-Drinks-Dairy-Brewing-Temperature Controlled Environments**
For stem diameter sizes other than 8mm, please use our custom build form using the blue button above to request a quotation.
Rugged industrial class 1, stainless steel case and bayonet bezel with 316 stainless steel stems. Manufactured in 100mm face sizes with Various lengths and diameters available. Temperature Ranges from -20°C to 200°C.
- 1 year guarantee offered for working parts / default - Micro Adjustable Pointer
- Optional Certificate of Calibration
- Custom made to order in approximately 4 weeks. You will be contacted after placing your order with a lead time for delivery.
Specifications
| Accuracy | Class 1 (1% F.S..D.) |
|---|---|
| Dial Size | 100mm |
| Construction | Flush fitting bayonet locking case and bezel |
| Measuring Element | Bi-Metalic coil |
| Ranges °C | -20 to +40°C, 0 to +100°C, 0 to +120°C, 0 to +200°C |
| Over Limit Range | 130% full scale |
| Stem / Bulb | 316 Stainless steel |
| Case / Bezel ring | Stainless steel AISI 316L |
| Window | Glass |
| Dial | Aluminium, black figures on white |
| Pointer | Aluminium, black |
| Movement | Direct drive on back entry |
| Ambient Temperature | -10°C....+50°C |
| Temperature Effect | max...0,3% / 10°C |
| Protection EN 60 529 | IP65 |
