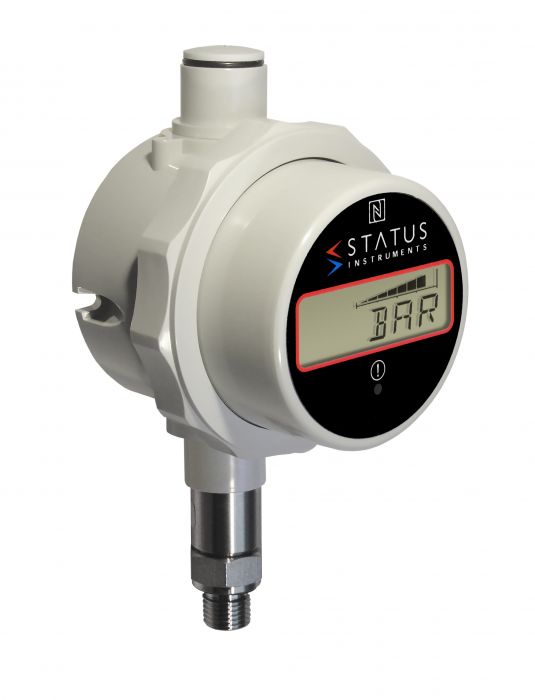

Status DM650PM - Base Mounted 0-30 bar Pressure & Temperature Indicator With Data Logging, Alarm & Messaging
Change Currency
| Case | Style | Input Range | Base Entry | Side Entry 1 | Side Entry 2 | |
| DM650PM | Base Mounted Sensor | C | 0-30 bar (D) | M16 (16) | M20 (20) | 00 (00) |
DM650PM / C / D / 16 / 20 / 00
- UP TO 100 BAR PRESSURE/ TEMPERATURE DISPLAY WITH SCALING/ LINEARISATION
- BATTERY POWERED
- ALARM RELAY, MAX/ MIN INFORMATION
- USER SET DISPLAY MESSAGING
- 5000 POINT DATA LOGGER WITH USB AND NFC INTERFACE
The DM650PM battery powered pressure switch accepts gauge pressure inputs up to 100 bar and displays the sensor pressure in BAR, PSI or the user’s engineering unit on a 6-digit LCD display. The instrument offers an advanced display mode allowing the user to also display one or two (1 to 32) character messages. Additional to the messages, the user may select an alert event to occur when the pressure is within a band. A change-over relay can be used together with the messaging and alerts to provide switching at user set points. In addition to this on board datalogging is also available to record process details at up to 5000 points. Force calculations (Ram force for example) can also be performed and displayed.
