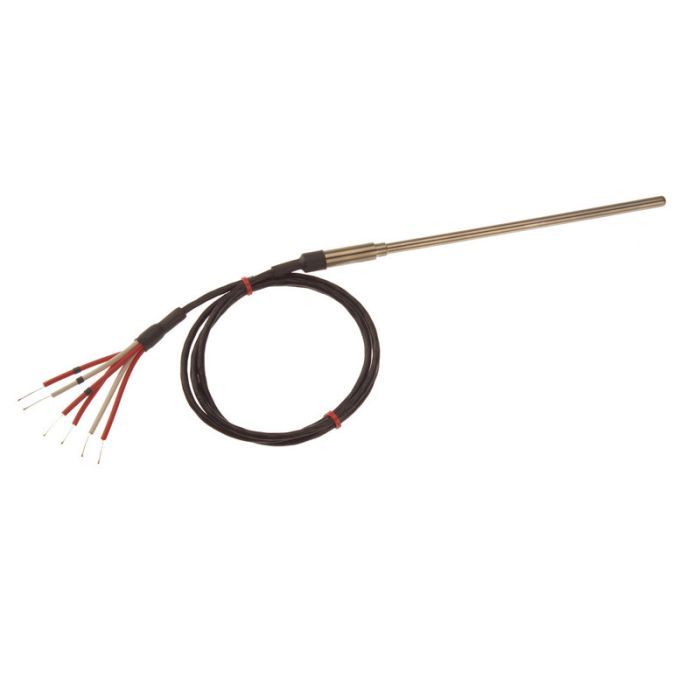

Dual Element Mineral Insulated Pt100 Probe With Extension Lead - 6.0mm Diameter - 250mm Length
Change Currency
SKU
XE-3696-001
£76.66
£63.88
- Buy 2 - 4 for £72.82 £60.68 each
- Buy 5+ for £68.99 £57.49 each
Mineral Insulated Duplex PRT’s with two independent PT100 detectors inside tip of probe. This allows one probe to be connected to two measurement or control devices; alternatively, one sensor may be used as a primary and the other as a backup, eliminating the need to remove and replace the probe if one of the sensors should fail.
- High temperature, rugged, flexible Pt100 probe with dual element
- Suitable for many industrial applications including high pressure, vacuum and vibration
- Pt100 Class B, 2 x 3 wire connection
- Flexible stainless steel sheath, 6.0mm diameter
- Probe can be bent to enable fitting in awkward locations
- 1 metre 6 core Teflon® insulated, screened lead
- Sensor temperature rating -50°C to +500°C
Specifications
| General Description | Flexible mineral insulated probe, 316 stainless steel sheath |
|---|---|
| Sensor Type | Pt100 (100 Ohms @ 0°C) to IEC 751, Class B, 2 x 3 wire |
| Probe Diameter | 6.0mm |
| Probe Length | 250mm |
| Termination Type | 2 x 3 wire tails – allows connection to any 2 or 3 wire PT100 instrument |
