IEC Fabricated Tube Thermocouples with Crimp Seal and Lead Wire Type K, J, T
Change Currency
SKU
XE-7900
£21.60
£18.00

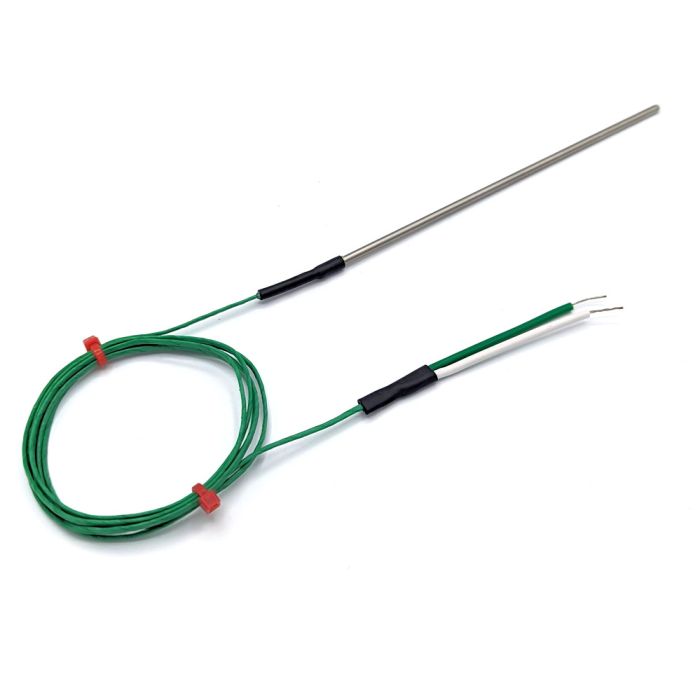

A fabricated IEC thermocouple with 316 stainless steel protection tube and 1 metre PFA flat pair flexible lead wire.
These items have a measuring range of -75°C to +250°C and are available in IEC Type K, T or J thermocouple calibration, with diameters of 3.0, 4.5 & 6mm 316 Stainless steel sheath, and standard lengths of 50, 100, 150 & 250 mm.
- Class 1 Thermocouple accuracy
- Sensor temperature rating -75°C to +250°C
- 3.0, 4.5mm & 6mm 316 stainless steel sheath
- 50, 100, 150 & 250mm standard lengths
Typical Applications
- Industrial Process Control
- Pipes or Ducts
- Ovens and heating
- General purpose
Specifications
| General Description | Fabricated IEC Thermocouple with Rigid Stainless Steel Sheath with 1 metre PFA lead |
|---|---|
| Thermocouple Type | IEC Type K, J or T |
| Cable Length | 1M |
| Cable Type | PFA |
| Termination Type | Stripped Wires |
| Sheath Length (mm) | 50, 100, 150, 250 |
| Sheath Diameter (mm) | 3.0, 4.5, 6.0 |
| Max. Temperature | 250°C |
| Min. Temperature | -75°C |
| Standards Met | Class 1 |
| Number of Wires | 2 |
