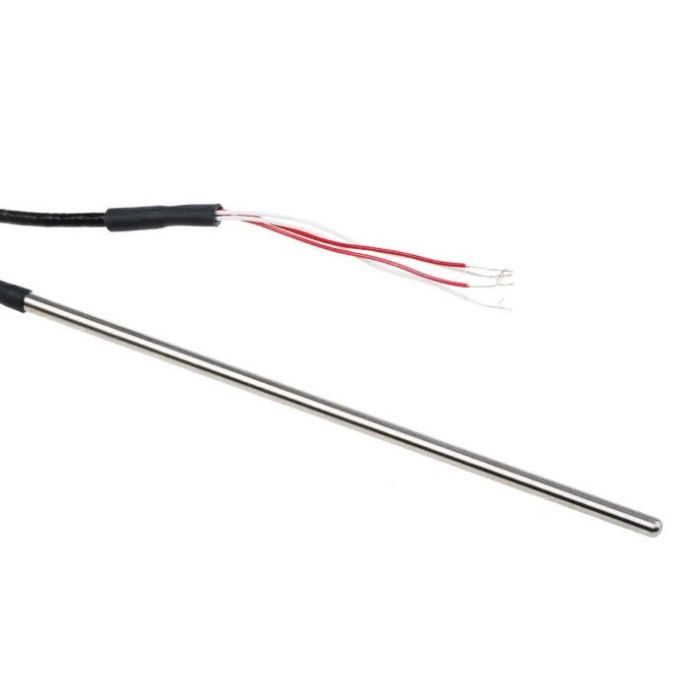

General Purpose Pt100 Probe with PFA lead - Type PRT - 4.5mm probe diameter - 200mm probe length - 2M cable length
Change Currency
SKU
XE-3621-001
£52.56
£43.80
- Buy 2 - 14 for £47.36 £39.47 each
- Buy 15+ for £41.17 £34.31 each
General Purpose Pt100 Probe with PFA lead - Type RTD / PRT
- Multipurpose Pt100 Probe to IEC751
- Class B, 4-wire connection
- Rigid 316 stainless steel sheath
- Teflon® insulated, screened lead
- Sensor temperature rating -50°C to +250°C
Specifications
| General Description | Multipurpose Pt100 Probe to IEC751 |
|---|---|
| Sensor Type | Pt100 (100 Ohms @ 0°C) to IEC 751, Class B, 4 wire |
| Sheath Material | 4.5mm diameter 316 Stainless Steel Sheath |
| Cable Length | 2M |
| Cable Type | Flexible Teflon® insulated, screened |
| Termination Type | 4-wire tails allows connection to any PT100 instrument 2, 3 or 4 wire |
| Max. Temperature | 250°C |
| Min. Temperature | -50°C |
| Standards Met | IEC751 |
