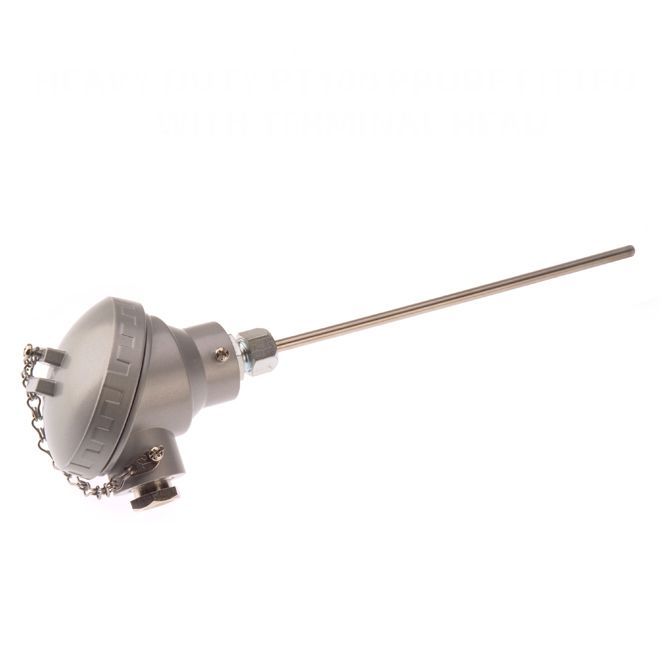

Pt100 4 wire class B Resistance Thermometer, KNE Head with 600mm Probe Length
Change Currency
SKU
XE-3653-001
£67.49
£56.24
- Buy 2 - 14 for £64.12 £53.43 each
- Buy 15+ for £60.73 £50.61 each
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| Sensor Type | Pt100 (100 Ohms @ 0°C) to IEC 751, Class B, 4 wire |
|---|---|
| Probe Diameter | 6.0mm |
| Probe Length | 600mm |
| Sheath Material | 316 Stainless Steel |
| Head Type | KNE |
| Termination Type | 4 wire connection block, M20 x 1.5mm cable entry (gland included) |
| Max. Temperature | +450°C (connection head @ 170°C) |
| Min. Temperature | -50°C |
| IP Rating | IP67 |
| Accuracy | Class B |
| Number of Wires | 4 |
