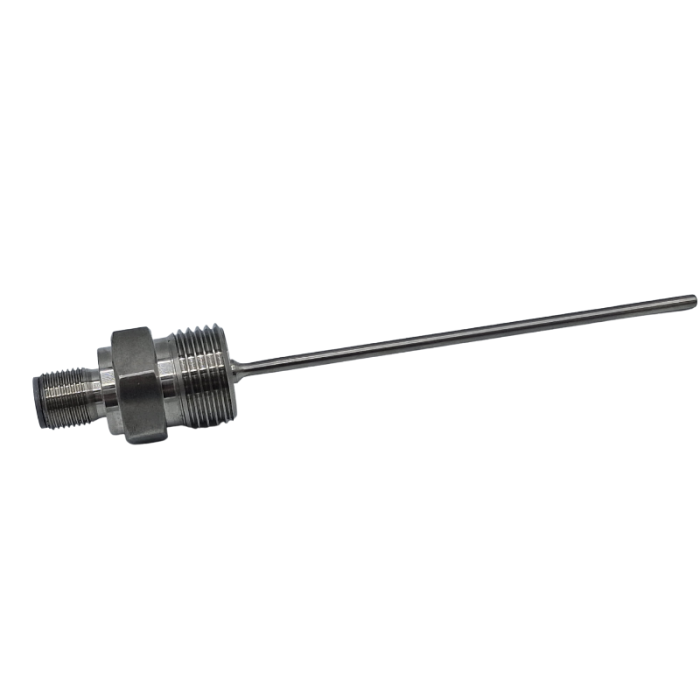

Industrial Automation Pt100 RTD Sensor with M12 connector - 1/2"BSPP Process Connection Type – 3mm Sheath Diameter - 100mm Sheath Length
Change Currency
SKU
XE-7216-001
£87.76
£73.13
- Buy 2 - 14 for £83.38 £69.48 each
- Buy 15+ for £78.98 £65.82 each
An industrial automation temperature sensor with a measuring range of -50 to +250°C with a Pt100 class A 4 wire resistance thermometer detector (RTD).
Available in 3 & 6mm diameter 316 Stainless steel sheath with standard lengths of 100, 150, 200 & 250mm. Supplied with plain barrel or screw in options 1/4 BSP, 1/2 BSPP & 1/4 & 1/2 NPT process threads.
The Sensor features an industry standard 4 pin M12 A coded instrument connection, suitable for new industrial process control & automation applications and field replacement of sensors.
- Pt100 RTD class A 4 wire resistance thermometer as per IEC 751
- Sensor temperature rating -50 to +250°C
- 4 pin M12 A coded instrument connection
- 3 & 6mm 316 stainless steel sheath
- 100, 150, 200 & 250mm standard lengths
- Plain barrel or screw in options 1/4 BSP, 1/2 BSPP & 1/4 & 1/2 NPT process threads
- For use with M12 female connectors & extension cables.
Typical Applications
- Automation Applications
- Field Replacement of Sensors
- Industrial Process Control
- Pharmaceuticals & Chemical Plants
Specifications
| General Description | Pt100 RTD Class A 4-wire resistance thermometer as per IEC 751 |
|---|---|
| Sensor Type | Pt100 |
| Sheath Material | 316 Stainless Steel |
| Termination Type | M12 Male |
| Sheath Length (mm) | 100mm |
| Sheath Diameter (mm) | 3mm |
| Process Connection options | 1/2" BSPP process thread |
| Max. Temperature | 250°C |
| Min. Temperature | -75°C |
| Number of Wires | 4 wire |
| Important Information | Typical Applications: Automation Applications / Field Replacement of Sensors / Industrial Process Control / Pharmaceuticals & Chemical Plants |
