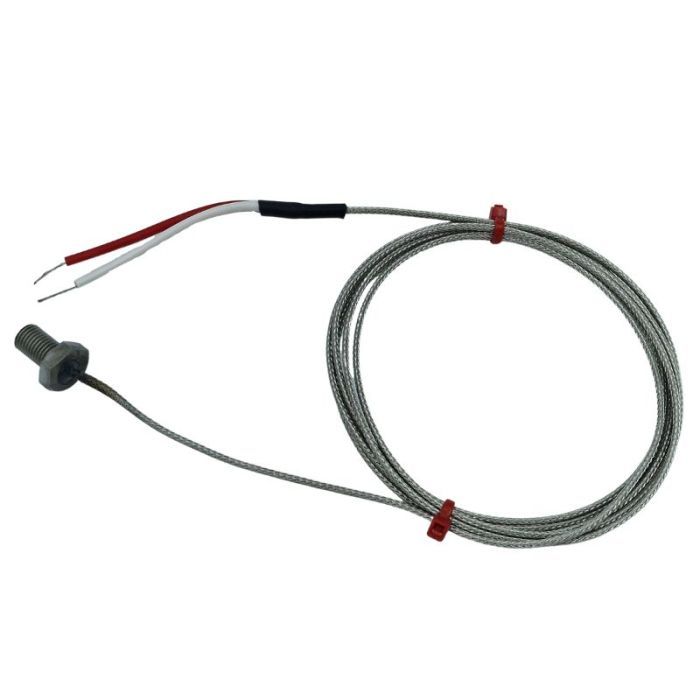

Bolt Thermocouple, Glassfibre Stainless Steel Over Braided Cable - JIS Type K- M10x1mm thread pitch - 25mm bolt size
Change Currency
SKU
XE-0593-001
£55.28
£46.07
- Buy 2 - 4 for £43.62 £36.35 each
- Buy 5+ for £37.07 £30.89 each
Bolt sensors are generally screwed into the surface which normally increases the speed of response and sensitivity of the measurement. Suitable for use up to +250°C.
Specifications
| Thermocouple Type | K JIS |
|---|---|
| Thermocouple Junction | Bolts have grounded junctions |
| Cable Length | 2m |
| Cable Type | Glassfibre stainless steel over braided cable |
| Max. Temperature | 250°C |
| Standards Met | JIS (Japanese Industrial Standards) |
| Bolt thread/pitch | M10 x 1mm |
| Colour | Positive: Red / Negative: White |
| Length | 25mm |
