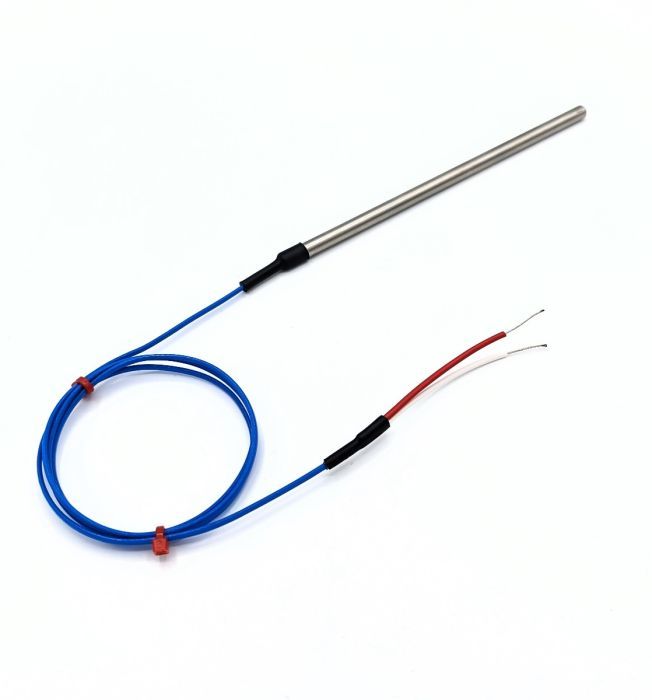

Fabricated Tube Thermocouples with Crimp Seal and Lead Wire Type K JIS with 150mm Sheath Length - 3.0mm Sheath Diameter
Change Currency
SKU
XE-7974-001
£43.48
£36.23
- Buy 2 - 4 for £32.60 £27.17 each
- Buy 5+ for £22.80 £19.00 each
A fabricated JIS thermocouple with 316 stainless steel protection tube and 1 metre PFA flat pair flexible lead wire.
These items have a measuring range of -75 to +250°C and are available in JIS Type K thermocouple calibration, with diameters of 3, 4.5 & 6mm 316 Stainless steel sheath, and standard lengths of 50, 100, 150 & 250 mm.
- Class 1 Thermocouple accuracy
- Sensor temperature rating -75 to +250°C
- 3, 4.5mm & 6mm 316 stainless steel sheath
- 50, 100, 150 & 200mm standard lengths
Typical Applications
- Industrial Process Control
- Pipes or Ducts
- Ovens and heating
- General purpose
Specifications
| General Description | Fabricated Type K Thermocouple with Rigid Stainless Steel Sheath with 1 metre PFA lead |
|---|---|
| Thermocouple Type | K JIS |
| Cable Length | 1M |
| Cable Type | PFA |
| Termination Type | Stripped Wires |
| Sheath Length (mm) | 150mm |
| Sheath Diameter (mm) | 3.0mm |
| Max. Temperature | 250°C |
| Min. Temperature | -75°C |
| Standards Met | Class 1 |
| Number of Wires | 2 |
