Fabricated Tube Thermocouples with Crimp Seal and Lead Wire Type K JIS with 50mm Sheath Length - 4.5mm Sheath Diameter
Change Currency
SKU
XE-7976-001
£41.17
£34.31
- Buy 2 - 4 for £30.89 £25.74 each
- Buy 5+ for £22.20 £18.50 each

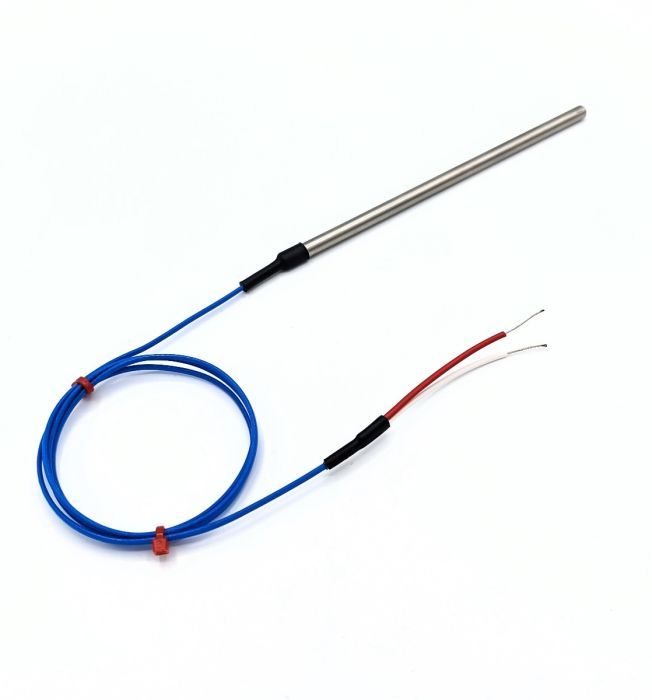

A fabricated JIS thermocouple with 316 stainless steel protection tube and 1 metre PFA flat pair flexible lead wire.
These items have a measuring range of -75 to +250°C and are available in JIS Type K thermocouple calibration, with diameters of 3, 4.5 & 6mm 316 Stainless steel sheath, and standard lengths of 50, 100, 150 & 250 mm.
- Class 1 Thermocouple accuracy
- Sensor temperature rating -75 to +250°C
- 3, 4.5mm & 6mm 316 stainless steel sheath
- 50, 100, 150 & 200mm standard lengths
Typical Applications
- Industrial Process Control
- Pipes or Ducts
- Ovens and heating
- General purpose
Specifications
| General Description | Fabricated Type K Thermocouple with Rigid Stainless Steel Sheath with 1 metre PFA lead |
|---|---|
| Thermocouple Type | K JIS |
| Cable Length | 1M |
| Cable Type | PFA |
| Termination Type | Stripped Wires |
| Sheath Length (mm) | 50mm |
| Sheath Diameter (mm) | 4.5mm |
| Max. Temperature | 250°C |
| Min. Temperature | -75°C |
| Standards Met | Class 1 |
| Number of Wires | 2 |
