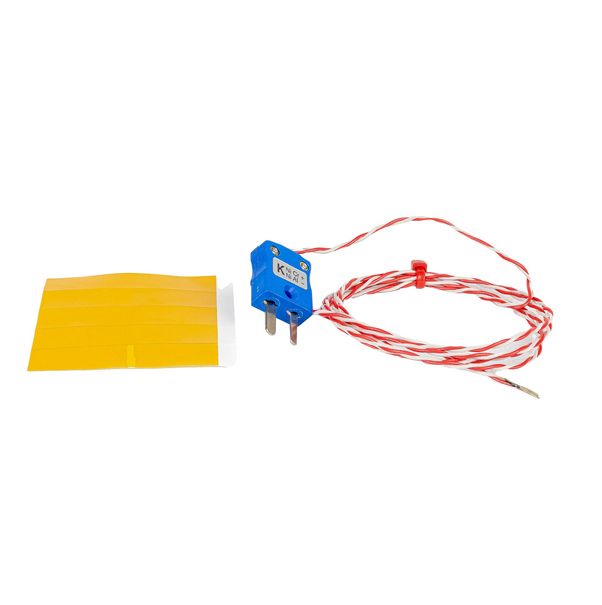

Fine Wire Disc Thermocouple, PFA with Miniature Plug - Type K JIS - 5m
Change Currency
SKU
XE-0563-001
£31.72
£26.43
- Buy 2 - 4 for £28.55 £23.79 each
- Buy 5+ for £25.38 £21.15 each
Specifications
| General Description | Exposed junction thermocouple with Copper Disc brazed at tip |
|---|---|
| Sensor Type | Copper disc, 6.35mm diameter x 0.3mm thick |
| Thermocouple Type | K JIS |
| Thermocouple Junction | Grounded measuring junction |
| Cable Length | 5m |
| Cable Type | 1/0.2mm PFA Teflon® insulated twisted wire |
| Termination Type | Miniature Plug |
| Max. Temperature | 200°C |
| Min. Temperature | 0°C |
| Standards Met | JIS (Japanese Industrial Standards) |
| Colour | Positive: Red / Negative: White |
| Accessories | Supplied with high temperature adhesive kapton strips (13x18mm x 5) for quick and easy attachment to surface/process |
