Thermocouple Brake Pad Temperature Sensors - JIS Type K - 3.2mm diameter
Change Currency
SKU
XE-0601-001
£19.51
£16.26
- Buy 2 - 4 for £17.57 £14.64 each
- Buy 5+ for £15.61 £13.01 each

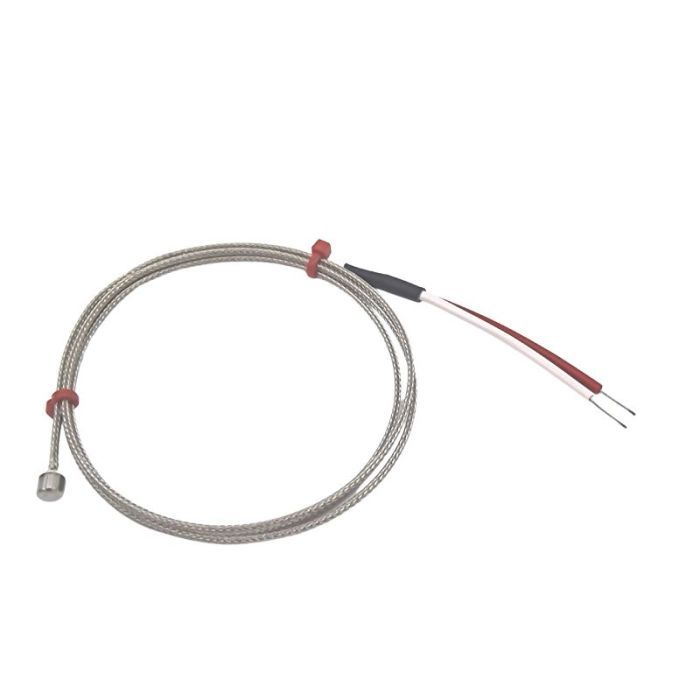

These thermocouple sensors are to be used to monitor the temperature of brake pads up to +400°C. They are designed to be embedded into the pads.
Each sensor has 1m of fibre glass insulated cable, with stainless steel Overbraid. Available in thermocouple type K and with a choice of tip diameters. Each tip is sealed with a high temperature ceramic paste (Fortafix) which can withstand temperatures up to +400°C.
Specifications
| General Description | Designed for monitoring the temperature of brake pads |
|---|---|
| Sensor Type | Grounded Junction |
| Thermocouple Type | K JIS |
| Probe Diameter | 6.0mm |
| Cable Length | 1m |
| Cable Type | Fibre glass with stainless steel Overbraid 7/0.2mm |
| Termination Type | Bare Tails |
| Max. Temperature | 400°C |
| Standards Met | JIS (Japanese Industrial Standards) |
| Colour | Positive: Red / Negative: White |
| Important Information | Potting sealant: Ceramic paste (Fortafix) |
