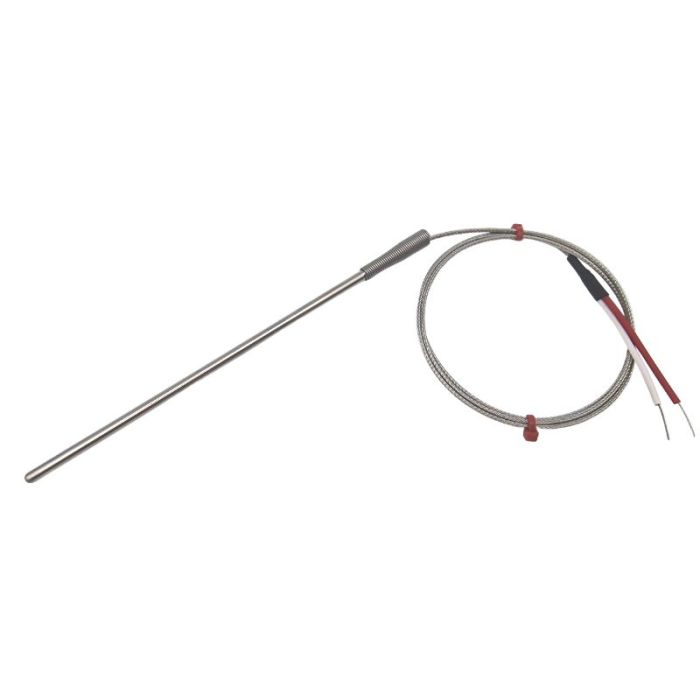

General Purpose Thermocouple Probe, Glassfibre insulated Cable with Stainless Steel Over-Braid - Type K JIS with Bare tails Termination - 1m Length
Change Currency
SKU
XE-0772-001
£9.32
£7.77
Specifications
| General Description | Rugged thermocouple with stainless steel sheath |
|---|---|
| Thermocouple Type | K JIS |
| Thermocouple Junction | Grounded hot junction for fast response |
| Probe Diameter | 4.5mm |
| Probe Length | 150mm |
| Cable Length | 1M |
| Cable Type | Glassfibre insulated lead with stainless steel overbraid |
| Core / Strands | 7/0.2mm |
| Termination Type | Bare Tails |
| Max. Temperature | +350°C |
| Min. Temperature | -60°C |
| Standards Met | JIS (Japanese Industrial Standards) |
