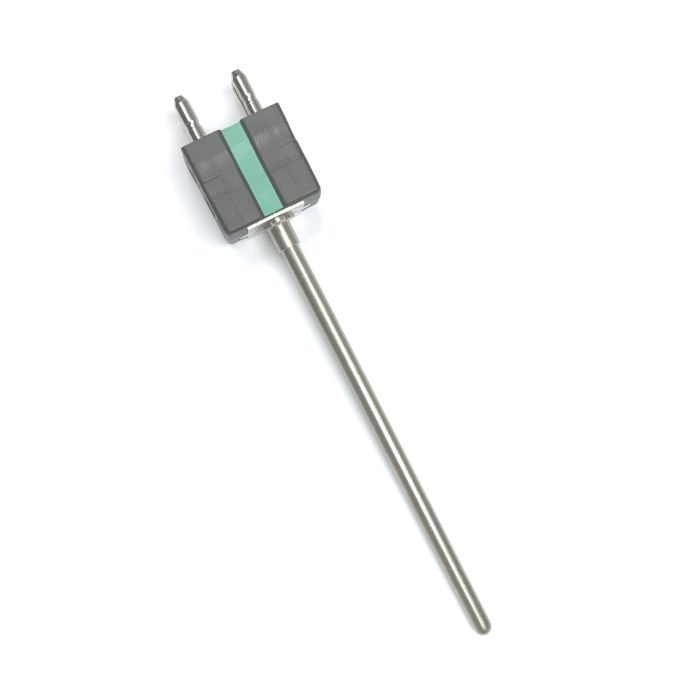

Mineral Insulated Dual Thermocouple with Standard Duplex Type K Plug

Change Currency

SKU
XE-2010
Select Options

Maximum 30 characters (30 remaining)

Maximum 40 characters (40 remaining)

Lead Time:
Select Options
Tariff Code:
90259000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

Need Your Temperature Sensor calibrated?

Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility.

Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information.



Specifications

General Description 310 stainless steel sheath. Sheath can be bent/formed to suit many applications and processes.
Sensor Type Mineral insulated Type ‘K’ with Duplex Thermocouple Plug
Thermocouple Type K IEC
Thermocouple Junction Insulated hot junction
Termination Type Standard duplex plug termination (200°C)
Max. Temperature 1100°C
Min. Temperature -40°C
Standards Met Conforms to IEC 584 specification
Connector Type Plug
Connector Size Standard
Length 150, 250 or 500mm
