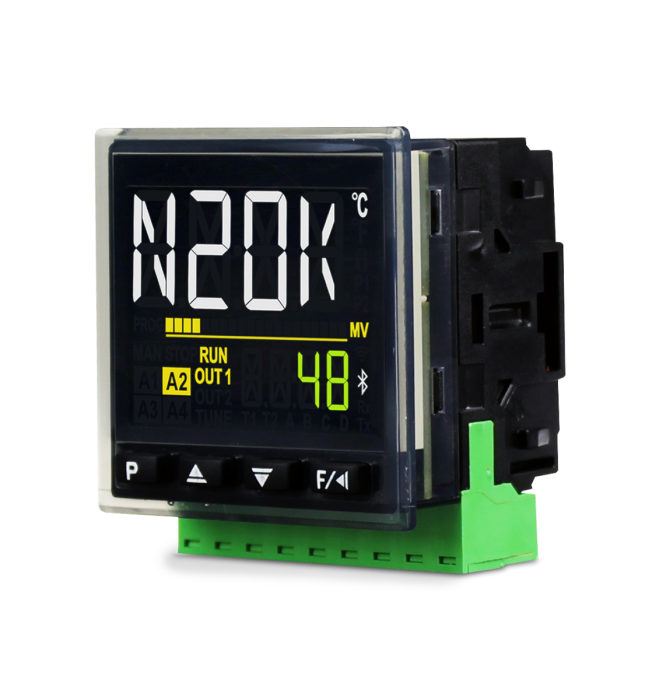

Novus Modular Controller N20K48 - USB Bluetooth Process controller, 1 relay, pulse out
Change Currency
NOVUS introduce the N20K48 controller family. Its new and consistent concept is based on a compact, powerful core controller plus a growing family of micromodules that enables it to meet a wide range of application requirements in the industry.
Its excellent cost-effective expansion micromodules allow for scalability of I/O, features and connectivity. In addition, it is a single controller model for all family, which avoids dealing with specific and expensive models, allowing easy spare parts inventory management.
The NOVUS ClickNGo technology for N20K48 micromodules ensures expandable capacity for more demanding applications and standardizes the learning and training of industry technical staff.
The native Bluetooth interface offers simple field diagnostic and commissioning through the QuickTune Mobile app, which reduces eventual downtime, while the USB interface provides batch configuration option, optimizing workbench series production.
With a new elegant and distinctive design, the controller features large and bright clear-to-read display, while keeping a compact depth enclosure, making it suitable for installation in restricted spaces.
With a design focused on the best user experience, the QuickTune Mobile app provides to the user an intuitive mobile platform for configuration management for all controllers and micromodules on the shop floor.
Specifications
- Display: LCD type, alphanumeric with 11 segments.
- Input Type: Thermocouple J, K, T, E, S, N, R, B, Pt100, 0-50 mV, 0-5 V, 0-10 V, 0-20 mA and 4-20 mA.
- PID Features: PWM, Auto tune
- Control Action: 1 Loop (Heat or Cool)
- Output Control:1 Pulse and up to 1 Relay
- Ramp & Soak: 20 Programs, 9 Segments
- Sampling Period: 18 ms
- Communication: RS485 Modbus RTU (optional)
- Power Consumption: 10 VA
- Special Functions: Soft-Start, PID Loop Break, Ramp and Soak event, 4 Alarms (9 alarm types) and Timer Function
- Configuration: Software NOVUS QuickTune, QuickTune Mobile, via USB (micro-B type) or Bluetooth
- Power Supply: 100-240 Vac/dc or 12-24 Vdc (Optional)
- Operate Conditions: Temperature: -20 to 60 °C (-4 to 140 °F), Humidity: 80 % @ 30 °C (86 °F)
- Front Panel: IP65, Polycarbonate (PC) UL94 V-2
- Enclosure: 48x48 (DIN 1/16), ABS+PC UL94 V-0
Modular controller N20k48 | English
The N20K48 is a modular PID controller configurable by software or application via USB or Bluetooth. This flexibility allows you to: • Configure the device with a smartphone, avoiding the use of a laptop at the application site. • Quick and easy access to the configuration (No technical expertise required). • No need to open panels in the instrumentation room or on the factory floor. • Easily perform batch configuration. This modular controller is innovative, scalable, meets a variety of application requirements, and even facilitates inventory management. Its micromodules are easy to handle and snap in due to NOVUS' patented ClickN'Go technology. In addition, the QuickTune Mobile interface is intuitive and user-friendly, which optimizes data management and controller use even for untrained operators. * UL certification on approval.
