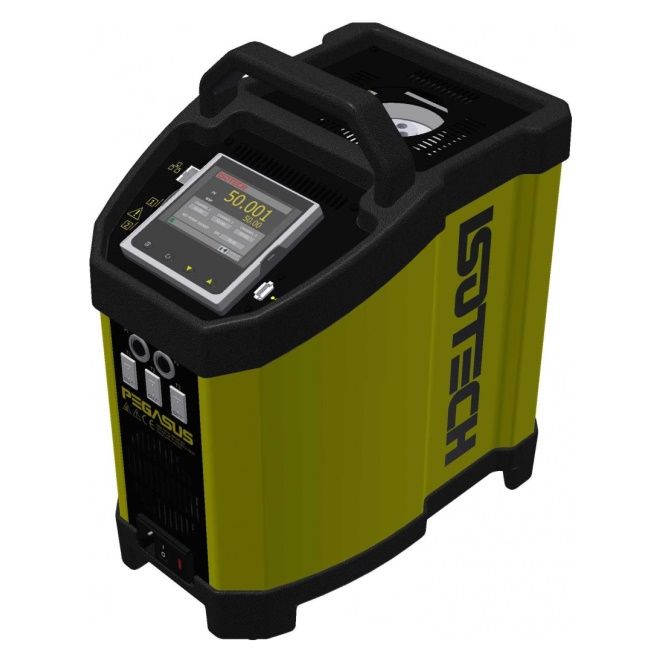

Isotech Pegasus Series

Please contact us for details of these products - available to order from our sales teams.

• High Temperature Thermocouple Calibration Furnace
• Custom Furnace Design with Optimised Profile
• Calibrate Whole Measurement Loop

The Pegasus range offers extreme high temperature calibration in an easy to use portable package - ideal for the calibration of high temperature thermocouples. It has been designed for fast heating and finds applications in the glass, electrical power, automotive and material processing industries.

A Blackbody target can be added for the calibration of infrared thermometers.

The standard insert has four 8mm pockets 80mm deep. The metal insert is strategically placed beneath 50mm of insulation to provide optimal performance over the radiant temperature range.

The optional Blackbody target is used with a specially angled Type R thermocouple that sits immediately behind the target area.

These award winning calibrators are easy to use and are available in three versions – the Basic, the Site and the ADVANCED. The Basic has a digital display of set and nominal temperature, the Site additionally includes an inbuilt independent temperature indicator for a reference probe. The ADVANCED controller has inputs for reference and test thermometers with a further range of sophisticated features including automatic temperature cycling, secure data logging and full colour high resolution display. The B model should be used with an external reference probe and indicator, such as the milliK. The thermocouples under test should be calibrated by comparison to the external probe. All models include I-Cal Easy LOG software and the ADVANCED models additionally include software to manage logged data and configure the unit.
