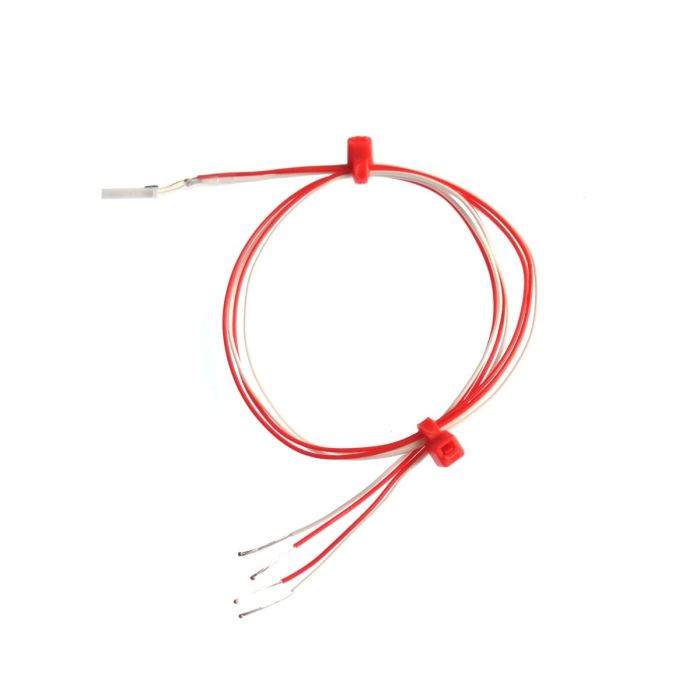

Platinum Resistance Detectors with extended leads, Thin Film - Pt100 Class A-4-wire - 500mm extended lead length
Change Currency
SKU
XE-5588-001
£28.13
£23.44
- Buy 2 - 4 for £23.51 £19.59 each
- Buy 5+ for £21.18 £17.65 each
Suitable for air, surface & immersion applications (Suitable only in dry, non-contaminating atmospheres where unprotected. Suitable protection /sheathing required for immersion into fluids, corrosive substances, processes etc.)
Specifications
| General Description | Platinum Resistance Detectors with extended leads, Thin Film |
|---|---|
| Sensor Type | Platinum Resistance, Pt100 Ohms |
| Element | Thin Film - Pt100 Ohm |
| Cable Length | 500mm |
| Cable Type | Teflon® insulated, stranded conductors |
| Core / Strands | 7/0.15mm |
| Cable Termination | Bare Tails |
| Max. Temperature | 250°C |
| Min. Temperature | -50°C |
| Tolerance | Class A |
| Standards Met | European / British Standard Conforms to IEC 60751:2008 / BS EN 60751:2008 |
| Extended lead wire configuration | 4 Wire |
| Fundamental interval | (0°C to 100°C): 38.5 ohms nominal (100 ohms) |
| Ice point resistance | 100 Ohms |
