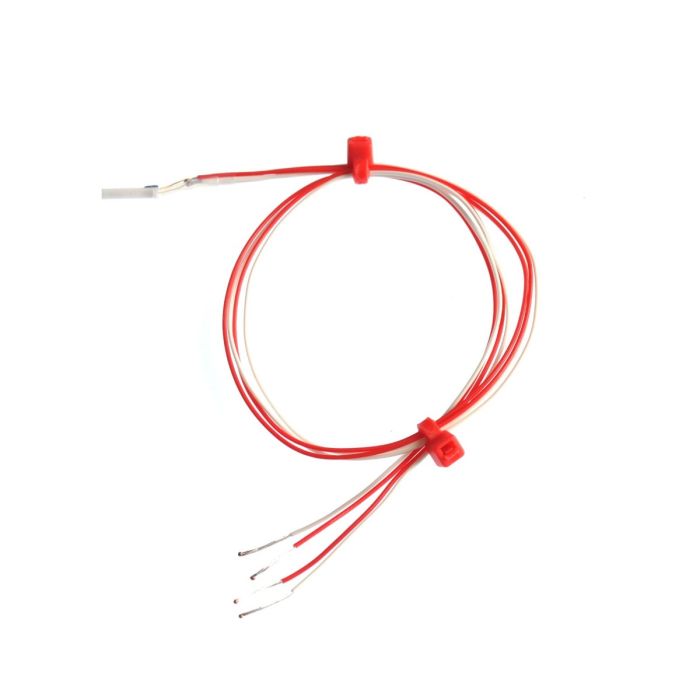

Platinum Resistance Detectors with extended leads, Thin Film - Pt100 Class B-2-wire - 500mm extended lead length
Change Currency
SKU
XE-5585-001
£24.24
£20.20
- Buy 2 - 4 for £20.24 £16.87 each
- Buy 5+ for £18.23 £15.19 each
Suitable for air, surface & immersion applications (Suitable only in dry, non-contaminating atmospheres where unprotected. Suitable protection /sheathing required for immersion into fluids, corrosive substances, processes etc.)
Specifications
| General Description | Platinum Resistance Detectors with extended leads, Thin Film |
|---|---|
| Sensor Type | Platinum Resistance, Pt100 Ohms |
| Element | Thin Film - Pt100 Ohm |
| Cable Length | 500mm |
| Cable Type | Teflon® insulated, stranded conductors |
| Core / Strands | 7/0.2mm |
| Cable Termination | Bare tails |
| Max. Temperature | 250°C |
| Min. Temperature | -50°C |
| Tolerance | Class B |
| Standards Met | European / British Standard Conforms to IEC 60751:2008 / BS EN 60751:2008 |
| Extended lead wire configuration | 2 Wire |
| Fundamental interval | (0°C to 100°C): 38.5 ohms nominal (100 ohms) |
| Ice point resistance | 100 Ohm |
