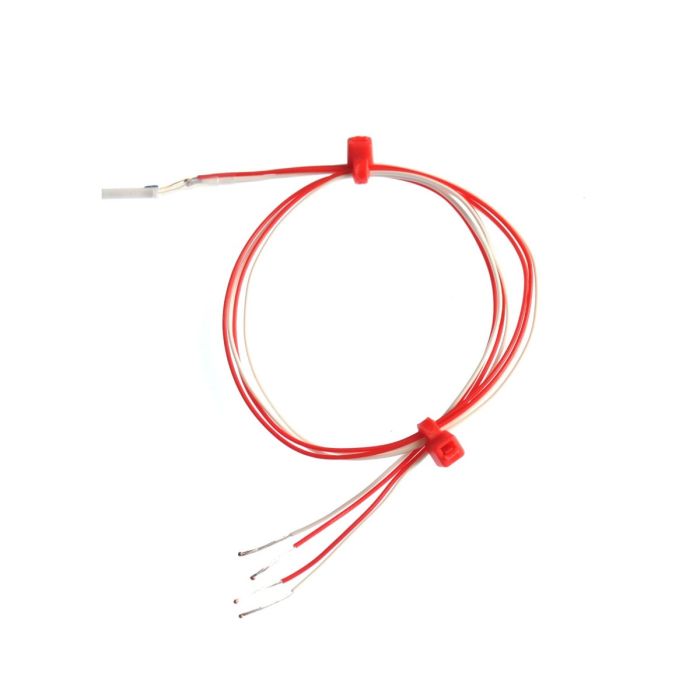

Platinum Resistance Detectors with extended leads, Thin Film - Pt1000 Class B-2-wire - 300mm extended lead length
Change Currency
SKU
XE-5590-001
£24.28
£20.23
- Buy 2 - 4 for £20.32 £16.93 each
- Buy 5+ for £18.29 £15.24 each
Suitable for air, surface & immersion applications (Suitable only in dry, non-contaminating atmospheres where unprotected. Suitable protection /sheathing required for immersion into fluids, corrosive substances, processes etc.)
Specifications
| General Description | Platinum Resistance Detectors with extended leads, Thin Film |
|---|---|
| Sensor Type | Platinum Resistance, Pt1000 Ohms |
| Element | Thin Film - Pt1000 Ohm |
| Cable Length | 300mm |
| Cable Type | Teflon® insulated, stranded conductors |
| Core / Strands | 7/0.2mm |
| Cable Termination | Bare tails |
| Max. Temperature | 250°C |
| Min. Temperature | -50°C |
| Tolerance | Class B |
| Standards Met | European / British Standard Conforms to IEC 60751:2008 / BS EN 60751:2008 |
| Extended lead wire configuration | 2 Wire |
| Fundamental interval | European / British Standard Conforms to IEC 60751:2008 / BS EN 60751:2008 |
| Ice point resistance | 1000 Ohms |
