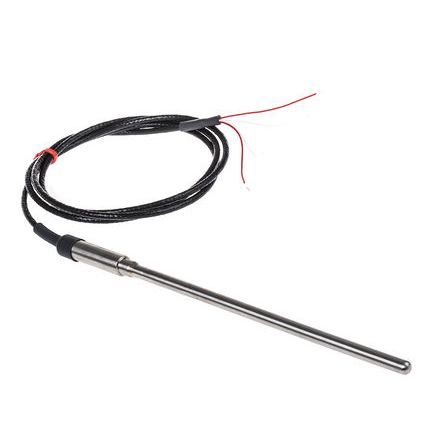

Platinum Resistance Pt100 Autoclave Drain Probe 4 Wire RTD / PRT

Change Currency

SKU
XE-9512-001
£61.82 £51.52
  • Buy 2 - 4 for £50.47 £42.06 each
  • Buy 5+ for £47.94 £39.95 each

Maximum 30 characters

Maximum 40 characters

Lead Time:
7 - 10 working days
Weight:
1.00KG
Tariff Code:
90259000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
  • Pt100 Autoclave & steriliser drain temperature probe
  • For use to monitor the fluid temperature in the outlet drain of the steriliser
  • Specifically designed in accordance with HTM2010 Clause 6.20 to provide the best possible accuracy and
  • stability in the rigorous environment of the steriliser chamber
  • Compatible with most common makes of Autoclaves
  • Need Your Temperature Sensor calibrated?

    Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C.

    Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information.



General Description Specifically designed in accordance with HTM2010 Clause 6.20 to provide the best possible accuracy and stability in the rigorous environment of the steriliser chamber.
Sensor Type Pt100 (100 Ohms @ 0°C) to IEC 751: 2008, Class B, 4 wire connection
Probe Diameter 6mm
Probe Length 150mm
Sheath Material 316 stainless steel sheath below potting collar (9.5mm dia. x 44mm long)
Cable Length 1m
Cable Type Teflon® insulated with braided screen
Core / Strands 7/0.2mm
Cable Termination Bare Tails
Max. Temperature +200°C
Min. Temperature -50°C
Accuracy Class B to IEC 751: 2008

Labfacility - Company Overview Presentation

Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.



Product Download Icon

Why is Calibration so important?

The goal of calibration is to minimise any measurement uncertainty by ensuring the accuracy of test equipment. Labfacility offer a 3 or 5 point calibration, Traceable to ISO17025 (UKAS) calibration standards, using our in-house calibration facility.
