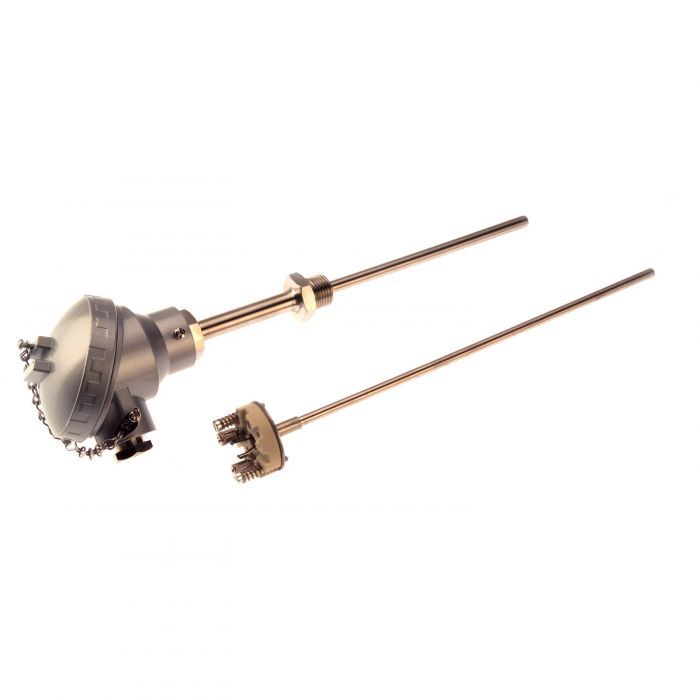

Platinum Resistance Pt100 Industrial Probe with Lagging Extension. 250mm x 8.0mm probe with 375mm x 6.0mm insert
Change Currency
SKU
XE-3641-001
£116.53
£97.11
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| Sensor Type | Pt100 (100 Ohms @ 0°C) to IEC 751 |
|---|---|
| Insert | 6.0mm diameter 316 stainless steel terminated with spring loaded ceramic connection block |
| Process Connection | 1/2"BSP parallel |
| Cable Connection | M20 x 1.5mm cable entry (gland included) |
| Termination Type | IP67 aluminium alloy weatherproof KNE connection head |
| Max. Temperature | +450°C (connection head @ 170°C) |
| Min. Temperature | -50°C |
| Tolerance | Class B |
| Number of Wires | 4 |
| Probe Material | 8.0mmØ 316 stainless steel below 1/2”BSP parallel process connection 1/2" diameter x 75mm lagging length to underside of connection head |
