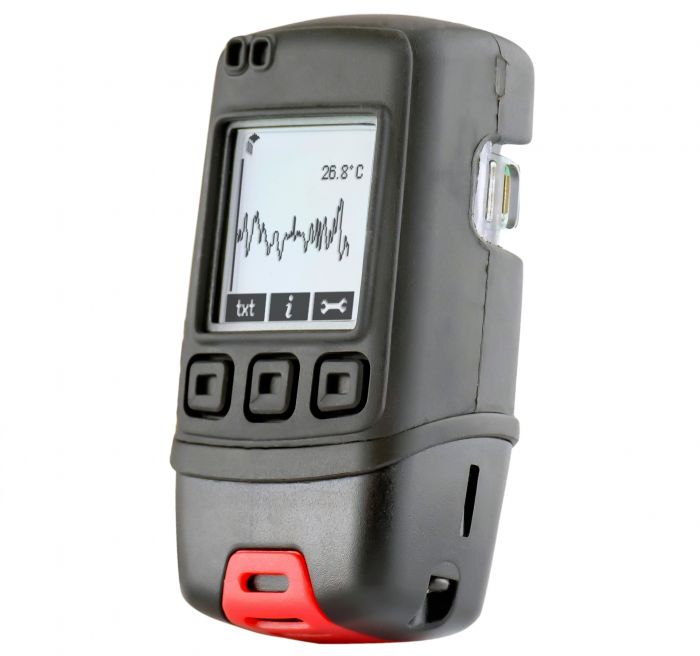

lascar EL-GFX-1- Temperature Data Logger with Graphic Screen
Change Currency
SKU
XE-4030-001
£119.99
£99.99
This USB data logger records over 250,000 temperature readings in one or more sessions for up to 1 year. Inside the rugged IP67 / NEMA 4X case, buttons for start, stop and restart and a graphic LCD with on-screen menus provide real-time analysis of data as a summary or as a graph. EasyLog software enables quick configuration and data download via the USB port. Supplied with two batteries, USB cover, Mounting Clip and Micro USB cable.
The EL-GFX-1 is suitable for a wide variety of applications. These include:
- Pharmaceutical fridge monitoring
- Transportation
- Food & drink
- Building & site monitoring
- HVAC
| General Description | Inside the rugged IP67 / NEMA 4X case, buttons for start, stop and restart and a graphic LCD with on-screen menus provide real-time analysis of data. |
|---|---|
| Type | Data Logger with graphic screen |
| Accuracy | (overall error): ±0.2°C (±0.4°F) typical |
| Operating Temperature | -30 to 80°C (-22 to 176°F) |
| Resolution of data display | High contrast dot-matrix LCD |
| Dimensions | 88 x 48.5 x 30.5mm (3.46 x 1.90 x 1.20”) |
| Max. Temperature | 80°C (176°F) |
| Min. Temperature | -30°C (-22°F) |
| Power Consumption | Battery Life: 4 months |
| Power Supply | BAT 3V6 1/2AA (included) |
| Maintenance | Logging rate: User selectable between 10 seconds and 1 hour |
