Room Temperature Sensor

Change Currency

SKU
XE-6330-001
£27.49 £22.91
Lead Time:
In-Stock
Weight:
1.00KG
Tariff Code:
90259000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:
Postage & Delivery:

If our current stock levels are insufficient to fulfil your order, lead time can be up to 4 weeks. You will be contacted after you order by our sales team. Contact us for information on current stock.

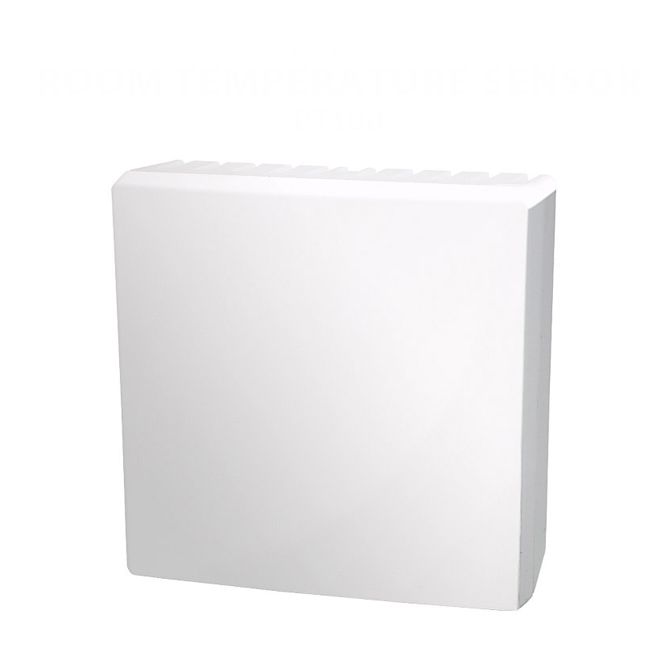

An indoor sensor in modern housing design measures the temperature in the range of -30 up to +60°C in gasiform medium. The temperature probe can be mounted directly on-wall or onto a junction box by 2 fixing screws. The extra wide ventilation slots ensures a good air circulation for a high accuracy of measurement.

Specifications

Measurement temperature range -30 to +60°C
Sensor Pt100
Circuit type 2-wire connection
Measurement current approx. 1 mA
Electrical connection screw terminals max. 1,5 mm²
Leakage resistance  > 100 MOhm, at +20°C (500 V DC)
Housing ABS polymer, colour signal white like RAL 9003
Dimensions (Housing) L 82 x W 82 x H 25 mm
Weight 55g
Protection type IP30
Protection class III
Storage temperature -20 to +50°C
Installation on-wall or on flush-mounted box
Standards CE-conformity, GOST, RoHS
