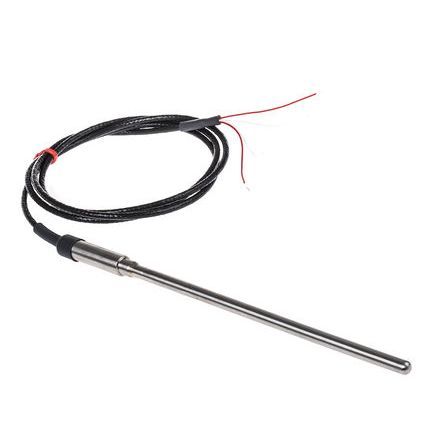

Platinum Resistance Pt100 Autoclave Drain Probe 4 Wire RTD / PRT
Change Currency
- Buy 2 - 4 for £50.47 £42.06 each
- Buy 5+ for £47.94 £39.95 each
- Pt100 Autoclave & steriliser drain temperature probe
- For use to monitor the fluid temperature in the outlet drain of the steriliser
- Specifically designed in accordance with HTM2010 Clause 6.20 to provide the best possible accuracy and
- stability in the rigorous environment of the steriliser chamber
- Compatible with most common makes of Autoclaves
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility, you can select any temperature points between -10°C & +200°C. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
| General Description | Specifically designed in accordance with HTM2010 Clause 6.20 to provide the best possible accuracy and stability in the rigorous environment of the steriliser chamber. |
|---|---|
| Sensor Type | Pt100 (100 Ohms @ 0°C) to IEC 751: 2008, Class B, 4 wire connection |
| Probe Diameter | 6mm |
| Probe Length | 150mm |
| Sheath Material | 316 stainless steel sheath below potting collar (9.5mm dia. x 44mm long) |
| Cable Length | 1m |
| Cable Type | Teflon® insulated with braided screen |
| Core / Strands | 7/0.2mm |
| Cable Termination | Bare Tails |
| Max. Temperature | +200°C |
| Min. Temperature | -50°C |
| Accuracy | Class B to IEC 751: 2008 |
Labfacility - Company Overview Presentation
Labfacility - Company Video Presentation featuring, Mineral Insulated Cable Preparation, In-House Welding, Thorough Inspection from our Quality Department, Thermocouple Cable reeled to correct spool lengths, Dedicated work stations for the various sensor configurations, Calibration Test room and Large quantities kept in stock for fast despatch.
Why is Calibration so important?
The goal of calibration is to minimise any measurement uncertainty by ensuring the accuracy of test equipment. Labfacility offer a 3 or 5 point calibration, Traceable to ISO17025 (UKAS) calibration standards, using our in-house calibration facility.
