Lascar EL-WiFi-DTC Wifi Dual Channel Thermocouple Probe Data Logging Sensor
Change Currency

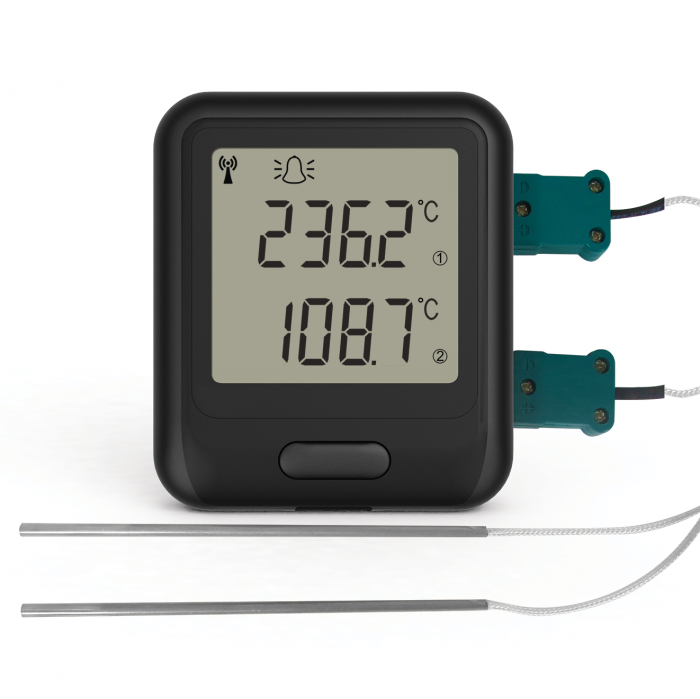

This WiFi-enabled dual channel data logger can remotely monitor an environment using two inter-changeable J, K or T type thermocouples. Supplied with two K Type probes, its measurement range out of the box measures from 0 to 200°C (32 to 392°F). Data is uploaded periodically using a standard WiFi network to the FilesThruTheAir Cloud or a single host PC.
EasyLog Cloud gives access to each data logger, and data collected from any internet-enabled device. Change data logger settings remotely, receive email alerts of alarm conditions, link sensors from multiple sites into one account and assign multiple user privileges.
Click here for help and troubleshooting using the software
The EL-WiFi-DTC is suitable for a wide variety of applications particularly those which require a wide temperature measurement range. These include:
- Medical
- Food
- Cold Chain
| General Description | This WiFi-enabled dual channel data logger can remotely monitor an environment using two inter-changeable J, K or T type thermocouples. Supplied with two K Type probes. |
|---|---|
| Type | WiFi-enabled dual channel data logger |
| Thermocouple Type | K, J, T |
| Accuracy | ±1.5°C (±3°F) |
| Readings | unlimited |
| Input / Ranges | 0 to 200°C (32 to 392°F): K type (provided) -200 to +1350°C / -328 to +2462°F: K type -200 to +1190°C / -328 to +2174°F: J type -200 to +390°C / -328 to +734°F: T Type |
| Dimensions | 82 x 70 x 36mm (3.22 x 2.75 x 1.41”) |
| Power Consumption | Battery life: 6 months |
| Power Supply | Rechargeable Battery / Mains Powered Option |
| Maintenance | Logging Rate: User selectable between 10 seconds and 12 hours |
