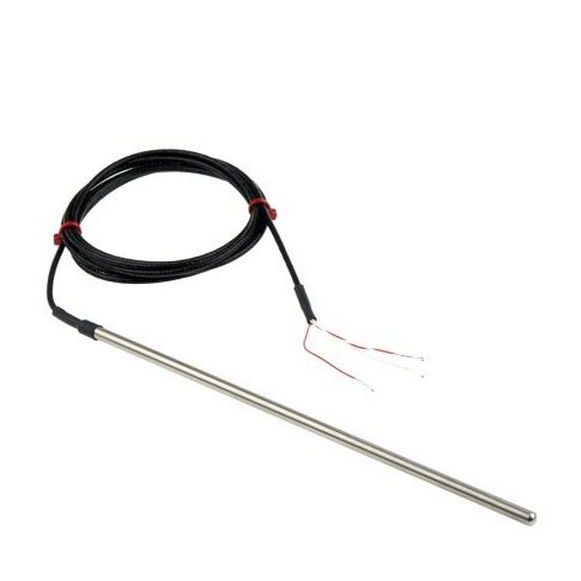

Pt100 Precision Probe with 2 metre lead - Type RTD / PRT - 6.0mm Diameter - 350mm Length with D Connector
Change Currency
- Buy 2 - 14 for £127.56 £106.30 each
- Buy 15+ for £118.70 £98.92 each
Precision Pt100 sensor offering high accuracy over the range -50 to 250°C or 0°C to 450°C. Ideal for use as a reference probe for comparison calibration of industrial sensors in temperature calibration baths, or for those looking for a high accuracy probe better than the usually offered class A or B types. These Precision Pt100 sensors have accuracies better than 1/5 DIN (ie. ±0.06°C @ 0°C).
- High accuracy, better than 1/5 DIN
- 250°C & 450°C versions
PRT sensor assemblies are constructed using sensing resistors (detectors) of the specified tolerance ( i.e. Class A, 1/5DIN, 1/10DIN etc.). This tolerance refers to the detector only, not the complete, fabricated probe. Detector tolerance is rarely achieved via the probe terminations due to lead resistance effects, welding of extension leads to the detector and general manipulation during construction. The true measurement uncertainties are available via optional UKAS traceable Probe Calibration.
Specifications
| General Description | Ideal for use as a reference probe for comparison calibration of industrial sensors in temperature calibration baths |
|---|---|
| Sensor Type | Pt100 (100 Ohms @ 0°C) |
| Cable Connection | 4-Wire current and voltage |
| Calibration | ISO17025 (UKAS) calibration not included - please contact our sales team if required |
| Probe Diameter | 6.0mm |
| Probe Length | 350mm |
| Sheath Material | Stainless steel 316 sheath |
| Cable Length | 2M |
| Cable Type | PTFE insulated screened lead |
| Core / Strands | 7/0.2mm |
| Cable Termination | D Connector |
| Max. Temperature | 450°C |
| Min. Temperature | 0°C |
| Accuracy | ±0.06°C @ 0°C |
