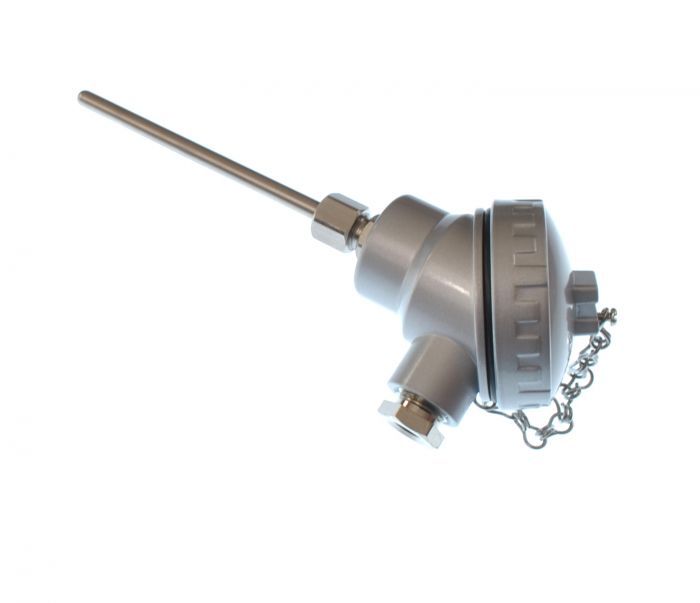

Pt100 4 wire class B Resistance Thermometer, Compact KNS Head With 1/2"BSP x 6mm fitting with 250mm Probe Length
Change Currency
SKU
XE-5512-001
£91.75
£76.46
- Buy 2 - 4 for £78.40 £65.33 each
- Buy 5+ for £74.48 £62.07 each
Specifications
| Sensor Type | Pt100 (100 Ohms @ 0°C) to IEC 751, Class B, 4 wire |
|---|---|
| Process Connection | 1/2"BSP x 6mm |
| Probe Diameter | 6.0mm |
| Probe Length | 250mm |
| Sheath Material | 316 Stainless Steel |
| Head Type | KNS |
| Max. Temperature | +450°C (connection head @ 170°C) |
| Min. Temperature | -50°C |
| IP Rating | IP67 |
| Accuracy | Class B |
| Number of Wires | 4 |
