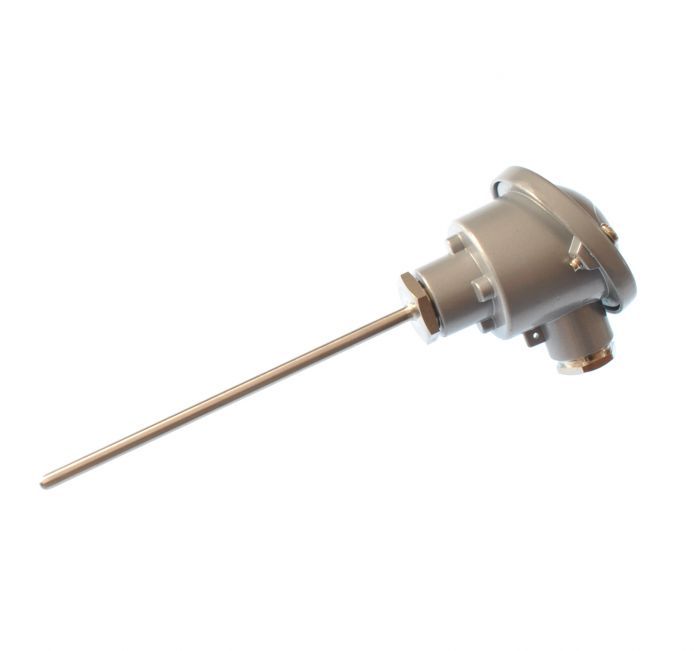

Pt100 4 wire class B Resistance Thermometer, DIN B Head with 100mm Probe Length
Change Currency
SKU
XE-5514-001
£82.22
£68.52
- Buy 2 - 4 for £70.24 £58.53 each
- Buy 5+ for £66.72 £55.60 each
Specifications
| General Description | Pt100 (100 Ohms @ 0°C) to IEC 751, Class B, 4 wire |
|---|---|
| Process Connection | Stainless steel plug (no thread) |
| Probe Diameter | 6.0mm |
| Probe Length | 100mm |
| Sheath Material | 316 Stainless Steel |
| Head Type | DIN B |
| Max. Temperature | +450°C (connection head @ 170°C) |
| Min. Temperature | -50°C |
| IP Rating | IP67 |
| Accuracy | Class B |
| Number of Wires | 4 |
