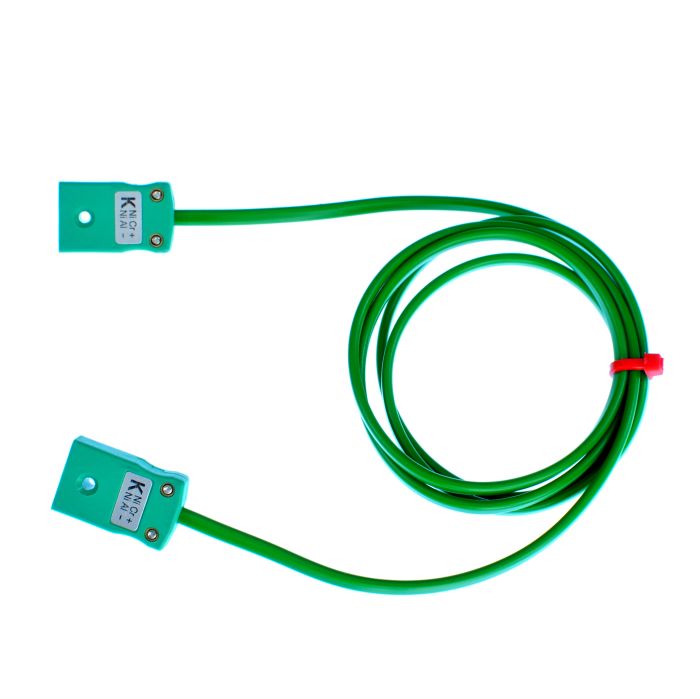

Type K PVC Extension Lead with Miniature Plugs or Sockets (IEC)

Change Currency

SKU
XE-5612
£19.38 £16.15
Lead Time:
Select Options
Weight:
1.00KG
Tariff Code:
90259000
Country of Manufacture:
GB
RoHS Compliant:
Product Compliance:

PVC Extension Lead with Miniature Plugs or Sockets

Cable Description

  • PVC insulated flat pair construction
  • Conductors laid flat PVC insulated with overall PVC sheath
  • All round general purpose cable, both waterproof and very flexible
  • Thermocouple extension types K & J, 2 or 5 Metre lengths available
  • Conductors 7/0.2mm
  • Tolerance Class 2
  • Insulation rating -10°C to 105°C
  • Colour code (cores & jacket) in accordance with IEC specification

Connector Description

  • Ideal for general purpose use
  • All contacts are polarised to ensure correct connection
  • Colour coded in accordance with IEC specification
  • Maximum continuous operating temperature 220 deg°C
Product Download Icon

Connectors Colour Chart

International Thermocouple Colour Codes For Connector Bodies. IEC, ANSI and JIS.
