Radiation Pendulum Temperature Sensor
Change Currency
SKU
XE-6332-001
£96.61
£80.51
If our current stock levels are insufficient to fulfil your order, lead time can be up to 4 weeks. You will be contacted after you order by our sales team. Contact us for information on current stock.

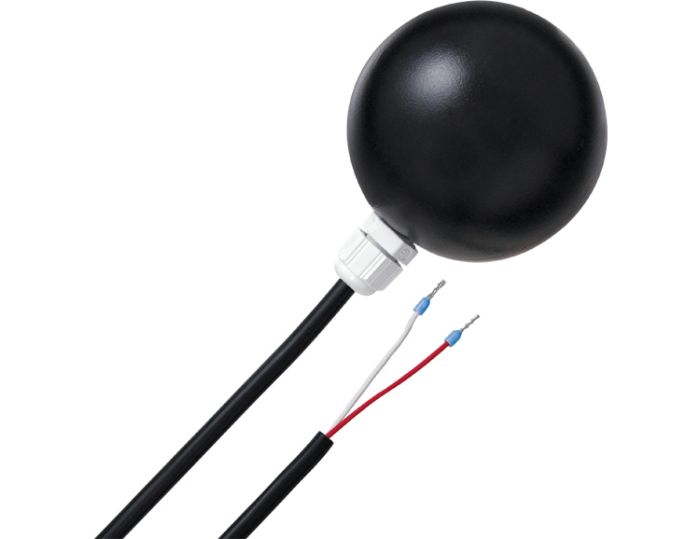

A room pendulum sensor measures the thermal radiation in the range of -30 up to +75°C e.g. in high rooms and is with all current sensors available. The temperature sensor is simply suspended as a pendulum in the room so an accurate measurement result of the perceived room temperature is ensured.
Specifications
| Measurement temperature range | -30 to +75°C |
| Sensor | Pt100 |
| Circuit type | 2-wire connection |
| Measurement current | approx. 1 mA |
| Electrical connection | stripped ends with ferrules |
| Cable | 2 m PVC cable (2x0,25 mm², max. +105°C) with core cable ends |
| Leakage resistance | > 100 MOhm, at +20°C (500 V DC) |
| Material | (Globe) aluminium (black) |
| Dimensions | (Globe) Ø 70 mm |
| Protection type | IP65 |
| Storage temperature | -20 to +70°C |
| Installation | screw fastening |
| Standards | CE-conformity, GOST, RoHS |
