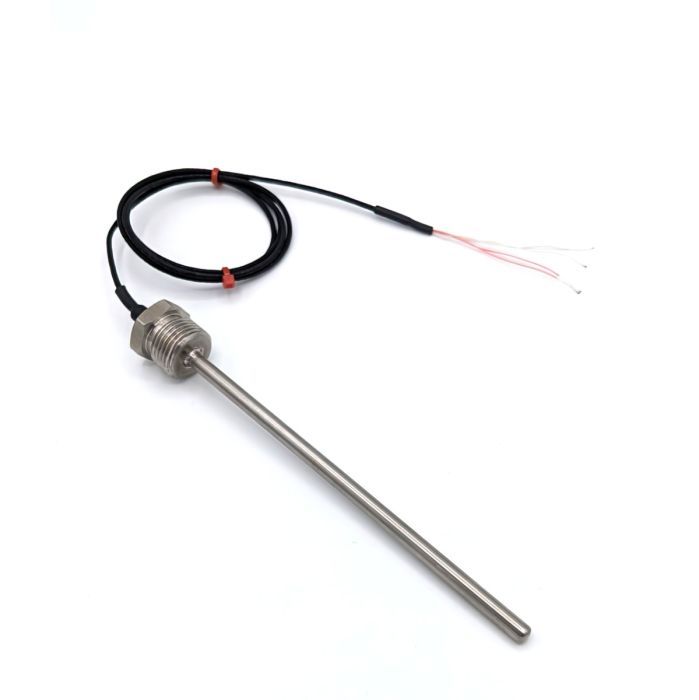

Screw In Pt100 RTD Temperature Probes - 1/2" NPT process thread - 6mm sheath diameter - 150mm sheath length
Change Currency
SKU
XE-7330-001
£55.55
£46.29
Screw in temperature sensors with a Pt100 class A 4 wire resistance thermometer detector (RTD) with a measuring range of -50 to +250°C with a 1 mete PFA lead wire
Available with process thread options 1/4 BSPP, 1/2 BSPP & 1/4 & 1/2 NPT for direct mounting into vessels, pipes, tanks, or ducting for liquid or gas temperature measurement. With standard diameters of 3 & 6mm diameter 316 Stainless steel sheath and standard lengths of 50, 100, 150 & 200.
- Screw-in options 1/4 BSPP, 1/2 BSPP & 1/4 & 1/2 NPT process threads
- Pt100 RTD class A 4 wire resistance thermometer as per IEC 751
- Sensor temperature rating -50 to +250°C
- 3 & 6mm 316 stainless steel sheath
- 50, 100, 150 & 200mm standard lengths
Typical Applications
- Industrial Process Control
- Pipes or Ducts
- Vessels & Tanks
Specifications
| General Description | Screw in RTD with 1/4" BSPP process fitting |
|---|---|
| Sensor Type | Pt100 |
| Cable Length | 1M |
| Cable Type | PFA |
| Termination Type | Stripped Wires |
| Sheath Length (mm) | 150mm |
| Sheath Diameter (mm) | 6mm |
| Process Connection options | 1/2" NPT |
| Max. Temperature | 250°C |
| Min. Temperature | -75°C |
| Standards Met | IEC 60751 |
| Number of Wires | 4 |
