IEC Screw In Thermocouple Temperature Probes - Type K
Change Currency
SKU
XE-7332
£49.44
£41.20

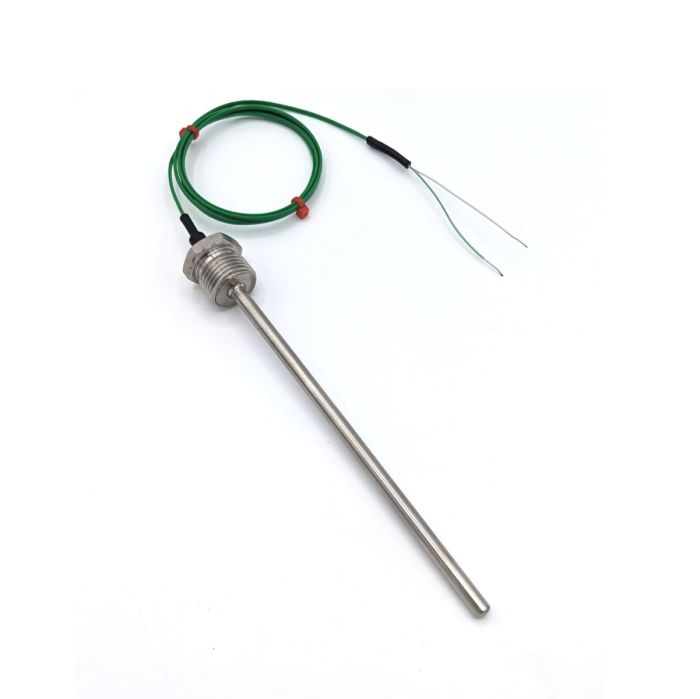

Screw in type K temperature sensors with a measuring range of -75 to +250°C and 1 metre PFA flat pair lead wire.
Available with process thread options 1/4 BSPP, 1/2 BSPP & 1/4 & 1/2 NPT for direct mounting into vessels, pipes, tanks, or ducting for liquid or gas temperature measurement. With standard diameters of 3 & 6mm diameter 316 Stainless steel sheath and standard lengths of 50, 100, 150 & 200.
- Screw-in options 1/4 BSPP, 1/2 BSPP & 1/4 & 1/2 NPT process threads
- Type K Class 1 Thermocouple
- Sensor temperature rating -75 to +250°C
- 3 & 6mm 316 stainless steel sheath
- 50, 100, 150 & 200mm standard lengths
Typical Applications
- Industrial Process Control
- Pipes or Ducts
- Vessels & Tanks
Specifications
| General Description | Screw in Type K thermocouple |
|---|---|
| Thermocouple Type | Type K IEC |
| Cable Length | 1M |
| Cable Type | PFA |
| Termination Type | Stripped Wires |
| Sheath Length (mm) | 50mm, 100mm, 150mm, 200mm |
| Sheath Diameter (mm) | 3mm, 6mm |
| Process Connection options | 1/4"BSPP, 1/2"BSPP, 1/4"NPT, 1/2"NPT |
| Max. Temperature | +250°C |
| Min. Temperature | -75°C |
| Standards Met | IEC |
| Number of Wires | 2 |
