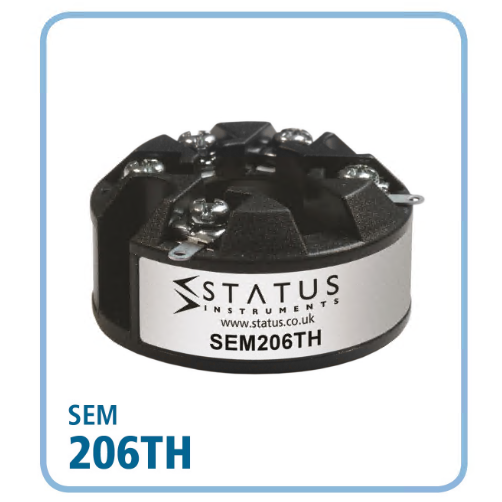

Status SEM206TH Temperature transmitter suitable for Thermistor or Pt1000 sensors

• Temperature transmitter suitable for Thermistor or Pt1000 sensors
• Accepts Thermistor or Pt1000 sensors
• 4 to 20mA loop powered output
• Sensor offset function
• Custom thermistors available

The SEM206TH thermistor temperature transmitter accepts thermistor or Pt1000 temperature sensors and converts the sensor output over a configured range to a standard industrial (4 to 20) mA transmission signal. The output signal is linear

to temperature. A variety of thermistor types are available when using USB SpeedLink configuration software. Please

consult your supplier for custom thermistors. In addition to the PC configuration feature, simple push button operation allows the user to select the desired temperature range manually, by either simulating the thermistor temperature with a resistance box or setting the thermistor sensor to the required calibration point and pressing button to store at both 4 mA and 20 mA points.

SENSOR CORRECTION

The SEM206TH sensor correction function via the Windows based USBSpeedlink software allows for close

matching to a known reference sensor eliminating possible sensor errors.

SENSOR BURN OUT DETECTION

If a sensor wire is broken or becomes disconnected the SEM206TH output will automatically go to its user

defined level upscale or downscale and the LED illuminates.

STABILITY

The SEM206TH in head transmitter incorporates the latest digital technology to ensure accurate, low drift

performance.

PC / PUSH BUTTON CONFIGURATION

PC configuration requires USB SpeedLink software together with a USB configuration kit. The software

allows the operator to select from a variety of thermistor types, then set the required temperature range

for a (4 to 20) mA output. A single push button and LED indicator allows the user to configure transmitter range against a manually set input condition.
