Surface Mount RTD Sensor without plug - 1M Length
Change Currency
SKU
XE-7700-001
£49.42
£41.18
- Buy 2 - 14 for £44.47 £37.06 each
- Buy 15+ for £42.01 £35.01 each

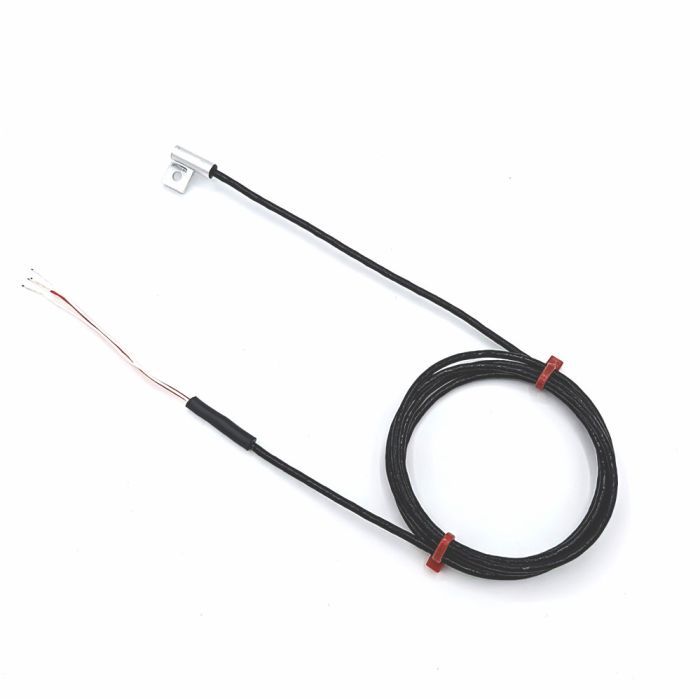

A bolt-on RTD Temperature Sensor with an aluminium housing for fast thermal response and tab with 3mm mounting hole for easy mounting, complete with a PFA lead and tails.
The sensor can be cemented, glued, screwed, or bolted on most flat surfaces.
It has a Pt100 Class A sensor as standard with optional Pt1000 sensor and lead lengths to suit, as well as non-standard connectors options, such as Lemo plug to suit your application.
Specifications
| General Description | RTD-830 style - Stripped 75mm tails as standard |
|---|---|
| Termination Type | Bare Tails |
| Max. Temperature | 230°C |
| Min. Temperature | -50°C |
| Tolerance | Class A |
| Length | 1M Lead |
| Number of Wires | 4 wire |
