Surface Mount RTD Sensor without plug - 2M Length
Change Currency
SKU
XE-7701-001
£55.84
£46.53
- Buy 2 - 14 for £50.26 £41.88 each
- Buy 15+ for £47.47 £39.56 each

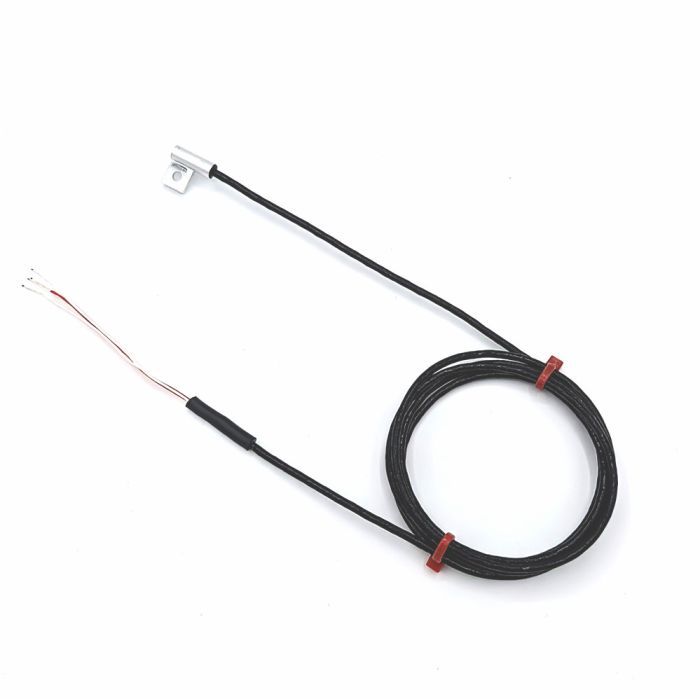

A bolt-on RTD Temperature Sensor with an aluminium housing for fast thermal response and tab with 3mm mounting hole for easy mounting, complete with a PFA lead and tails.
The sensor can be cemented, glued, screwed, or bolted on most flat surfaces.
It has a Pt100 Class A sensor as standard with optional Pt1000 sensor and lead lengths to suit, as well as non-standard connectors options, such as Lemo plug to suit your application.
Specifications
| General Description | RTD-830 style - Stripped 75mm tails as standard |
|---|---|
| Termination Type | Bare Tails |
| Max. Temperature | 230°C |
| Min. Temperature | -50°C |
| Tolerance | Class A |
| Length | 2M Lead |
| Number of Wires | 4 wire |
