Surface Mount RTD Sensor with Miniature 3-PIN plug - 5M Length
Change Currency
SKU
XE-7705-001
£76.38
£63.65
- Buy 2 - 14 for £68.75 £57.29 each
- Buy 15+ for £64.93 £54.11 each

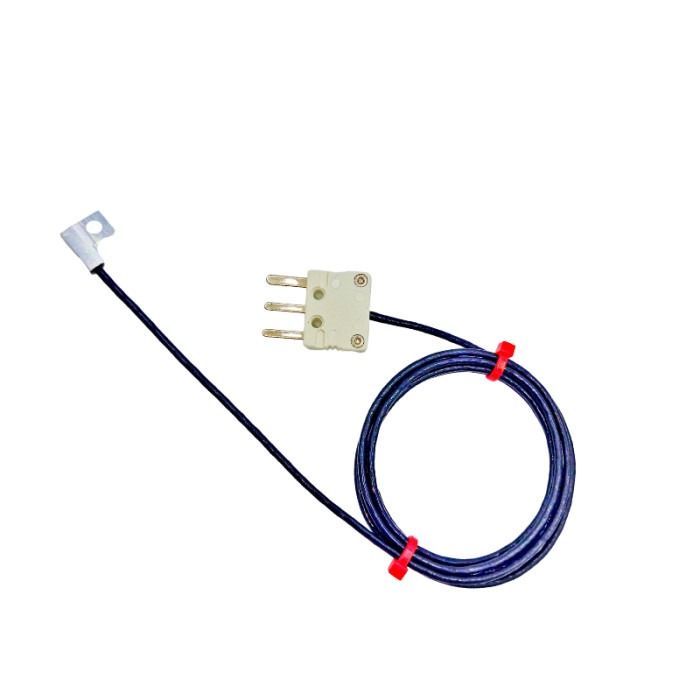

A bolt-on RTD Temperature Sensor with an aluminium housing for fast thermal response and tab with 3mm mounting hole for easy mounting, complete with a PFA lead and tails.
The sensor can be cemented, glued, screwed, or bolted on most flat surfaces.
It has a Pt100 Class A sensor as standard with optional Pt1000 sensor and lead lengths to suit, as well as non-standard connectors options, such as Lemo plug to suit your application.
Specifications
| General Description | RTD-830 style - Stripped 75mm tails as standard |
|---|---|
| Termination Type | Miniature 3-PIN Plug |
| Max. Temperature | 230°C |
| Min. Temperature | -50°C |
| Tolerance | Class A |
| Length | 5M Lead |
| Number of Wires | 4 wire or 3 wire with connector |
