Stainless Steel Compression Fittings - Tapered Thread (BSPT)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Change Currency

SKU

XE-5071

£3.90 £3.25

Select Thread Type

To Suit Probe Diameter

Selected Part Number / Show All

Qty

Lead Time:

Select Options

Tariff Code:

90259000

Country of Manufacture:

RoHS Compliant:

RoHS

Product Compliance:

Download Here

For Postage and Delivery Terms

please click here

Details

To suit a wide range of mineral insulated and other probe type sensors offered by Labfacility.

Stainless steel compression fittings with BSPT (British Standard Pipe Taper) threads are widely utilised for connecting pipes and tubes in various demanding environments.

BSPT threads are tapered, meaning the thread diameter decreases towards the end, which enhances sealing as the fitting is tightened.

The use of stainless steel provides excellent corrosion resistance, durability, and strength, making these fittings ideal for harsh conditions found in industries such as chemical processing, oil and gas, and marine applications.

Specifications

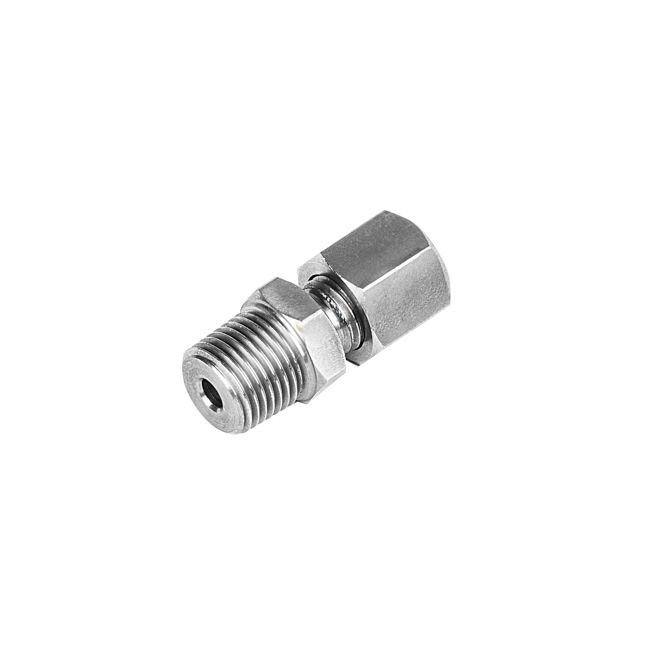

General Description	Male in-line stainless steel compression type with nut & olive
Material	Stainless steel, BSPT tapered thread
Thread	1/8"BSPT, 1/4"BSPT, 1/2"BSPT, 3/8"BSPT or 3/4"BSPT available
Probe Diameter	Suitable for both metric and imperial probe diameters from 1.0mm to 12.0mm
