MM2030 - Thermocouple Thermometer / Simulator
Change Currency
Calibration options
PLEASE NOTE: Lead time will be 7-10 working days when choosing calibration
Calibration can be performed to approved recognised standards (National and International) or may simply constitute checking procedures on an “in-house” basis. Temperature calibration has many facets, it can be carried out thermally in the case of probes or electrically (simulated) in the case of instruments and it can be performed directly with certified equipment or indirectly with traceable standards.
|
Calibration Type |
'Simulated Calibration' |
Probes Required for 'System Calibration' |
|
3 points (single channel) fixed @ 0, 100, 200°C |
0 | 1 |
|
3 points (dual channel) fixed @ 0, 100, 200°C |
0 | 2 |
|
5 points (single channel) fixed @ 0, 50, 100, 150, 200°C |
0 | 1 |
|
5 points (dual channel) fixed @ 0, 50, 100, 150, 200°C |
0 | 2 |
--------------------------------------------------------------------------------------------------------------------------
PRODUCT DETAILS

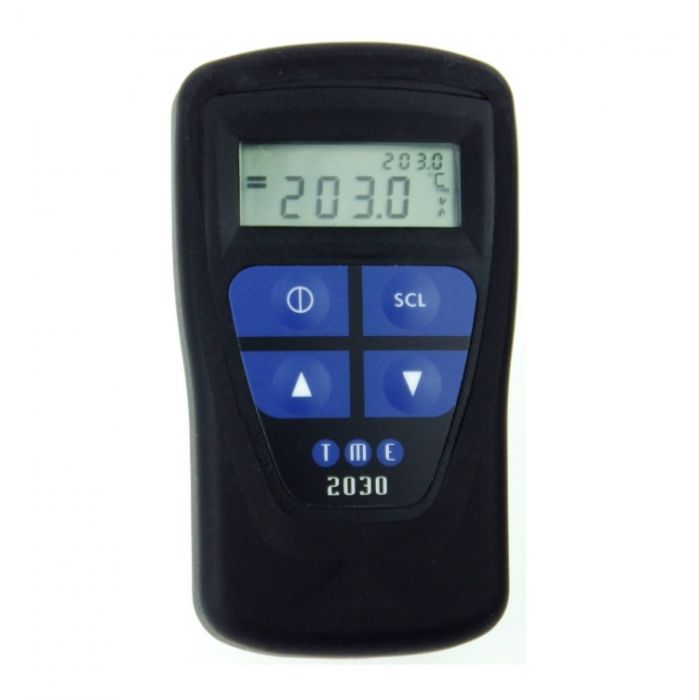

MM2030 – Robust thermocouple thermometer and simulator. Widely used for the checking calibration of thermocouple instruments or for Milli-Volt measurement/output.
Features
- Single Input
- Measurement Range: -200 to +1,372°C (probe type dependant)
- Accuracy: - ± 0.1% of Reading ± 0.2°C
- C/F Selectable
- IP67 Waterproof Casing
- Low Battery Indication
- Selectable Thermocouple Types: K, T, J, R, N, E, S and Infra Red
- Milli-Volt measurement/output
- Self-Calibrating
- Rubber Boot included for extra protection against damage
- Supplied with K Type plug to plug thermocouple cable KMPC1MP
- Includes 1 x PP3 Battery
- Requires: A Thermocouple Probe/Sensor
