Lascar EL-SGD 70-ATP - Panel Mountable Four-Channel Temperature Data Logger
Change Currency
SKU
XE-4073-001
£497.99
£414.99

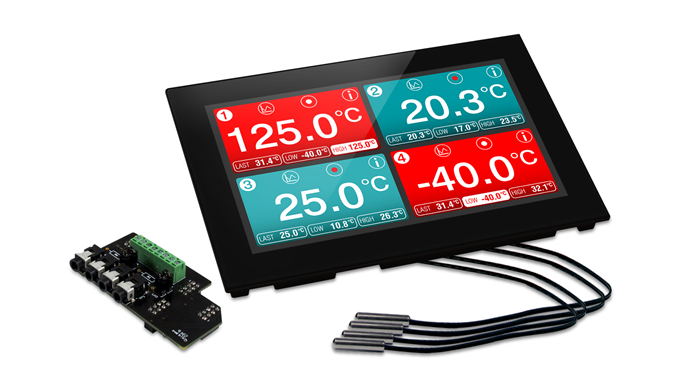

The EL-SGD 70-ATP is a panel-mountable, four-channel temperature data logger based on the PanelPilotACE platform. The product includes a 7” panel mounted display module with capacitive touch screen, a four-channel thermistor temperature board and x4 compatible temperature probes. The user interface comprises an advanced logging application which shows real-time readings for all four temperature channels, live trend graphs and access to a suite of real-time data analysis information. The logger can store up to 100,000 readings per channel at sample rates from 5 seconds to 12 hours.
Each EL-SGD 70-ATP includes:
- 7” PanelPilotACE display with mounting kit SGD 70-A
- Four-channel thermistor add-on board S70-TP
- 4 x 1m thermistor probe with 3.5mm plug EL-PROBE2-1.0M-TP
- Mini USB cable CABLE USB A-MF
| General Description | Includes a 7” panel mounted display module with capacitive touch screen, a four-channel thermistor temperature board and x4 compatible temperature probes. |
|---|---|
| Type | Panel Mountable Four-Channel Temperature Data Logger |
| Communications Protocol | USB |
| Accuracy | ±1.0°C (±1.8°F) |
| Readings | (per channel) 100,000 |
| Resolution | 0.01°C (0.01°F) |
| No of Channels | Up to 4 |
| Dimensions | 186 mm (7.3”) x 122 mm (4.3”) x 21 mm (0.8”) |
| Input / Ranges | Supplied probe measurement range: -40°C to +125°C (-40°F to +257°F) |
| Maintenance | Logging Rate: 5 seconds to 12 hours |
| Accessories | Each EL-SGD 70-ATP includes: 7” PanelPilotACE display with mounting kit SGD 70-A Four-channel thermistor add-on board S70-TP 4 x 1m thermistor probe with 3.5mm plug EL-PROBE2-1.0M-TP Mini USB cable CABLE USB A-MF |
How to set up your EL-SGD 43 and 70-ATP
This videoi will show you how to set up your EL-SGD 43-ATP. The same procedure applies to the EL-SGD 70-ATP.
