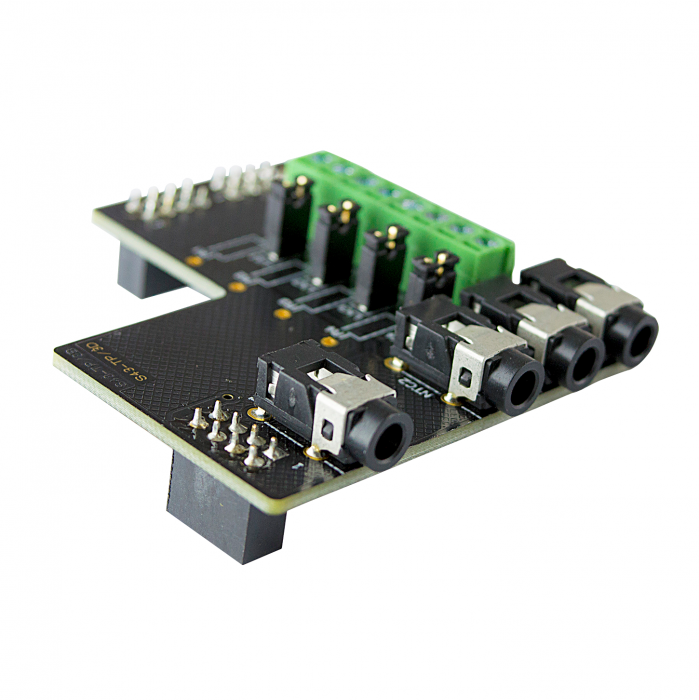

Lascar PanelPilot S43-TP - Four-channel thermistor add-on board
Change Currency
SKU
XE-4072-001
£45.00
£37.50
The S43-TP is an accessory to the PanelPilotACE range of compatible displays and panel meters and is compatible with the 4.3” PanelPilotACE display module SGD 43-A. The S43-TP mounts on the rear of the SGD 43-A and provides up to four thermistor inputs which can then be utilised within the free PanelPilotACE Design Studio software to measure, display, log and graph temperature readings.
Each S43-TP is supplied with a 1m thermistor probe fitted with a 3.5mm socket and featuring a potted metal sheath
| General Description | Each S43-TP is supplied with a 1m thermistor probe fitted with a 3.5mm socket and featuring a potted metal sheath |
|---|---|
| Type | Four-channel thermistor add-on board |
| Accuracy | Temperature accuracy: ±1.0°C (±2.0°F) |
| Resolution | Internal resolution 0.01°C (0.01°F) |
| No of Channels | Up to 4 |
| Input / Ranges | Supplied probe measurement range: -40°C to +80°C (-40°F to +176°F) |
