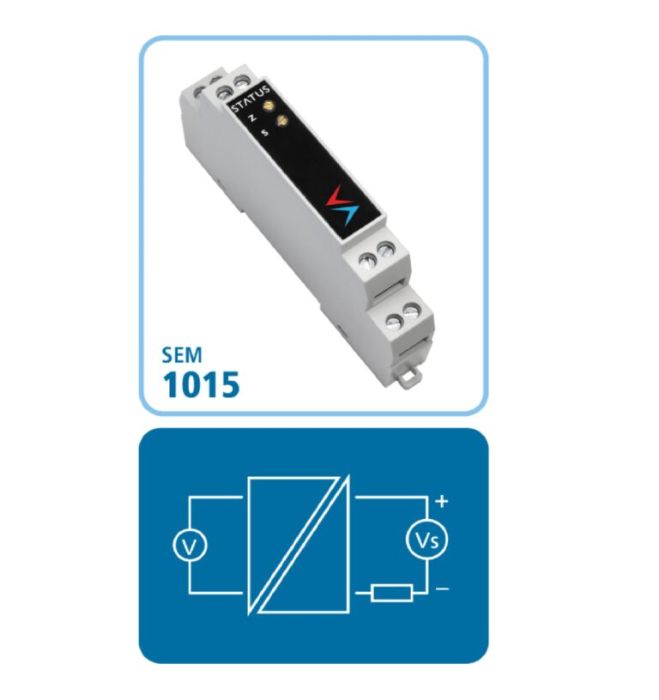

Status SEM1015 - Loop Powered Voltage to Current convertor / Isolator

• Accepts DC Voltage Input between (-10 and 100) V DC

• (4 to 20) mA Output Loop Powered

• Galvanic Isolation 500 V DC Flash Tested 1 KV

• High Accuracy 0.05%

• 12.5 mm Wide

This (4 to 20) mA isolator can be configured to accept most of the common voltage ranges found in both commercial and industrial applications. The input is fully isolated from the output circuit. The isolator range can be specified at the time of order, but if required the user may re-range the transmitter to a new range. The Isolator is housed inside a plastic enclosure, suitable for DIN rail mounting. Screw terminals are provided for wire connections. The enclosure provides side entry access to coarse offset and span adjusters and a range selector switch.
