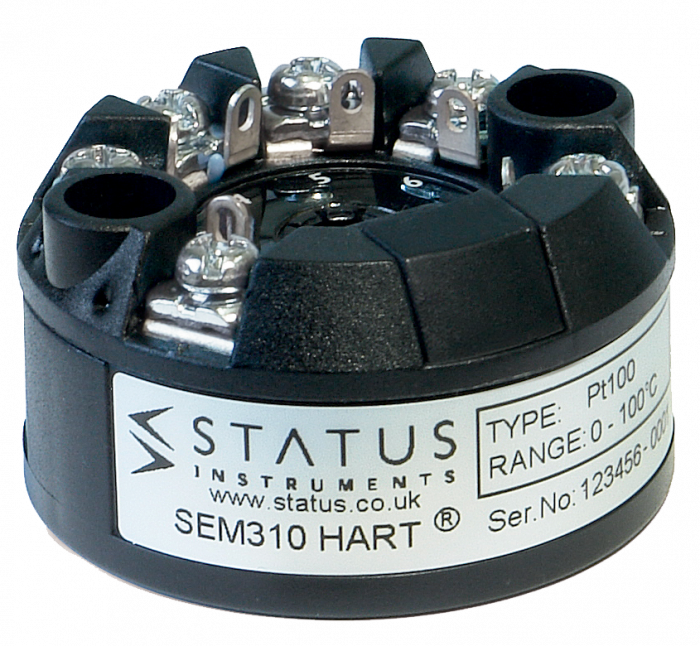

Status SEM310 MKII - Universal, Dual Input, High Performance HART Temperature Transmitter
Change Currency
- HART 5,6,7 COMPATABLE
- UNIVERSAL INPUT, DUAL CHANNEL
- MATHS FUNCTIONS
- FLASH TESTED TO 4 KV DC
The SEM310 is a HART 5 upwards, (generic device) compatible universal transmitter. It accepts RTD, Thermocouple, Potentiometer or millivolt input signals and converts them to the industry standard (4 to 20) mA transmission signal. Alternatively, HART multidrop mode can be selected.
The SEM310 is programmed using a standard USB lead. Link To Product configuration software
FEATURE HIGHLIGHTS
SENSOR REFERENCING
The SEM310 sensor referencing via the Windows based USBSpeedlink software allows for close matching to a known reference sensor eliminating possible sensor errors.
USER CALIBRATION
In addition to sensor referencing, current output trimming is possible via the USB and HART commands.
CUSTOM LINEARISATION
The SEM310 can be programmed with a custom linearization to suit nonstandard sensors or sensors with unusual or unique characteristics. Consult the sales office for details.
SENSOR BURN OUT DETECTION
If a sensor wire is broken or becomes disconnected the SEM310 output will automatically go to its user defined level (upscale or downscale) or pre-set value.
OUTPUT CURRENT PRESET
For ease of system calibration and commissioning the output can be set to a pre-defined level anywhere within the (4 to 20) mA range.
