Temperature Sensors

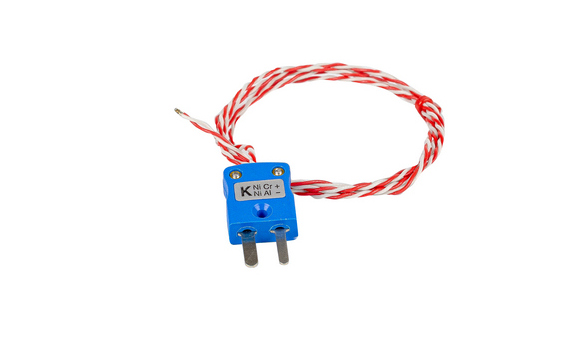

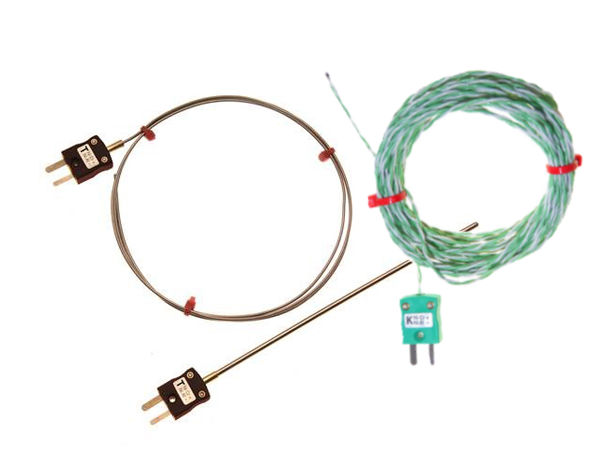

Thermocouples IEC
A large range of IEC Thermocouples, in various sizes all in IEC colours. Products include Mineral Insulated, Fine Wire Versatile Exposed Junctions, Fabricated & Specialist Thermocouples together with a range of moulded-on Thermocouples.

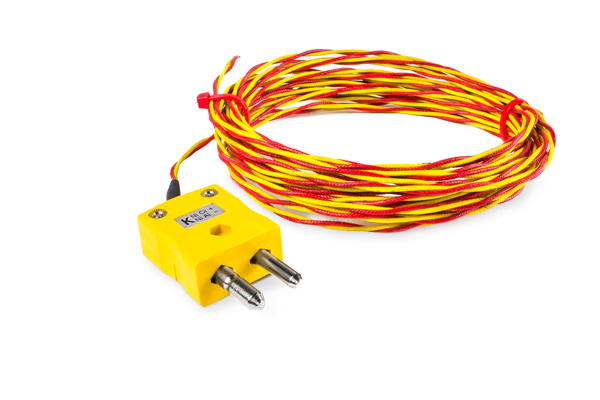

Thermocouples ANSI
Mineral Insulated or Fabricated thermocouples, as well as exposed junction thermocouples, in various sizes all in ANSI colours.
Thermocouples JIS
Mineral Insulated thermocouples (Coming soon), Fabricated thermocouples and Exposed junction thermocouples all in JIS colours.

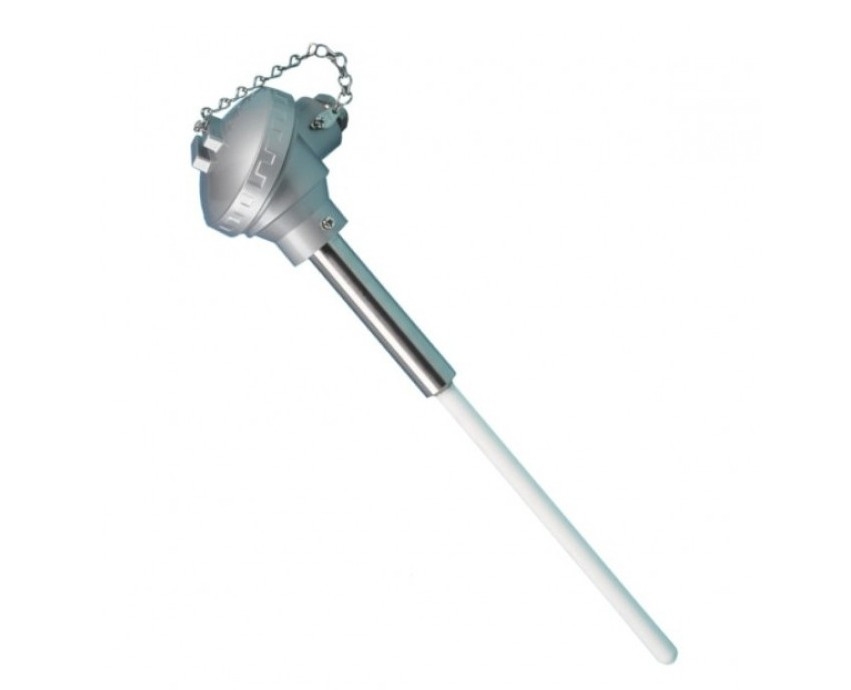

High Temperature Sensors
Thermocouple with miniature Ceramic Plug & Ceramic Socket & Ceramic Kiln Thermocouples For High Temperature

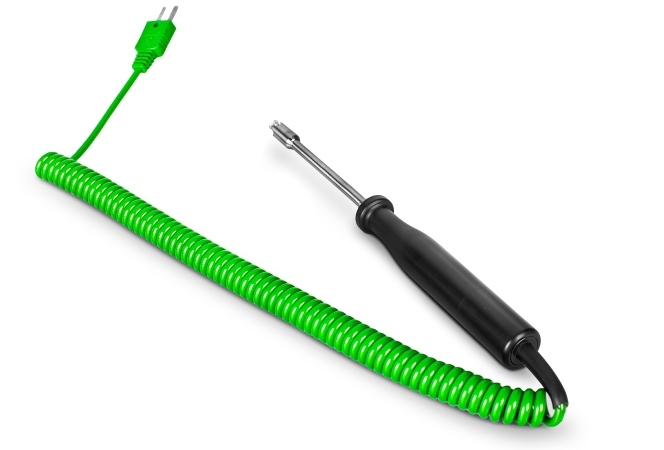

Handheld Temperature Sensors
A selection of IEC, ANSI & JIS Hand Held Temperature Sensors to suit your specific application. Includes the Ergonomic Style range with IP67 rated 'shark tail style' handle which contains an antimicrobial substance to kill microorganisms, making it ideal for the food industry or applications where cleanliness is paramount.

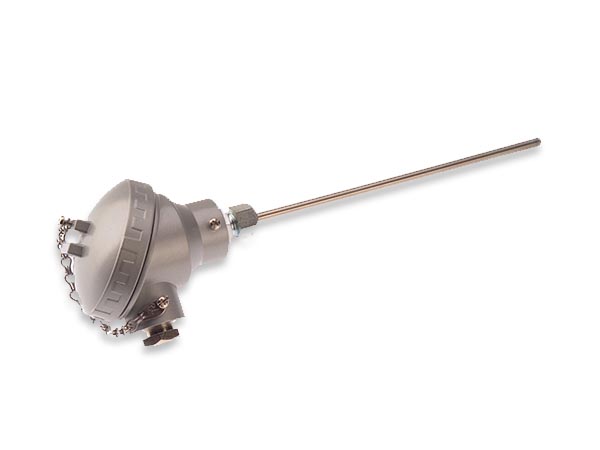

RTD / PRT Sensors
A range of Fabricated or Specialist RTD / PRT Sensors & Detectors to suit a wide range of applications together with Platinum Sensing Resistor Inserts and MI Probe with lead

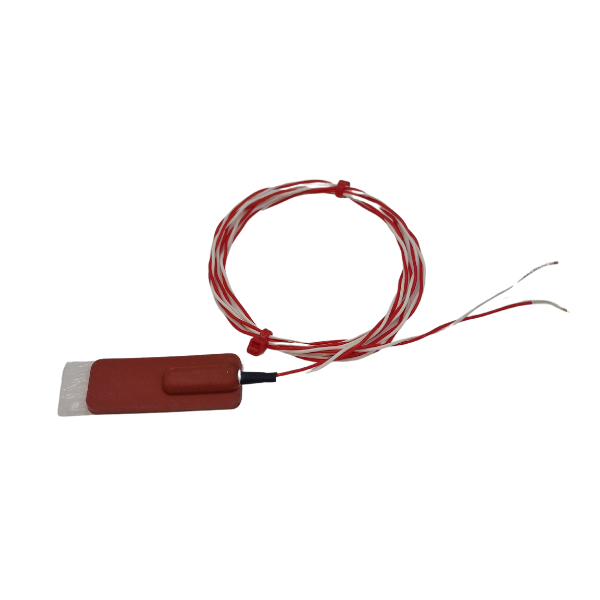

Thermistors
At Labfacility, we specialise in manufacturing a diverse range of NTC thermistor temperature sensing probes. Our probes are crafted using high-accuracy, interchangeable elements known for their excellent long-term stability.
- Standard Probes: Our standard line features a 10kΩ NTC element.
- Custom Designs: We offer bespoke design and fabrication services to match your specific requirements.

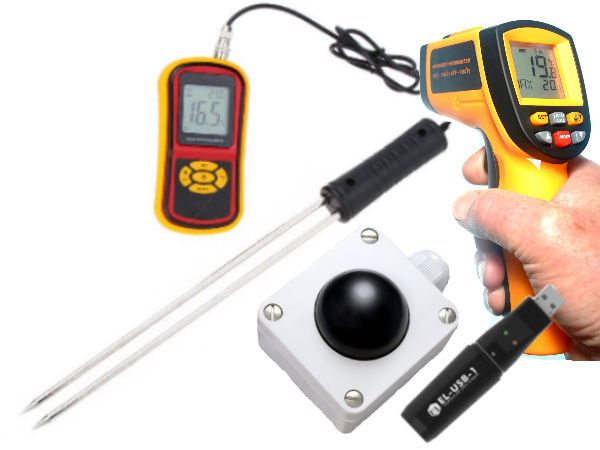

Environmental Sensors & Instrumentation
A selection of sensors and instrumentation including room, ceiling and radiation sensors, hand held thermometers, infrared thermometers and data loggers.

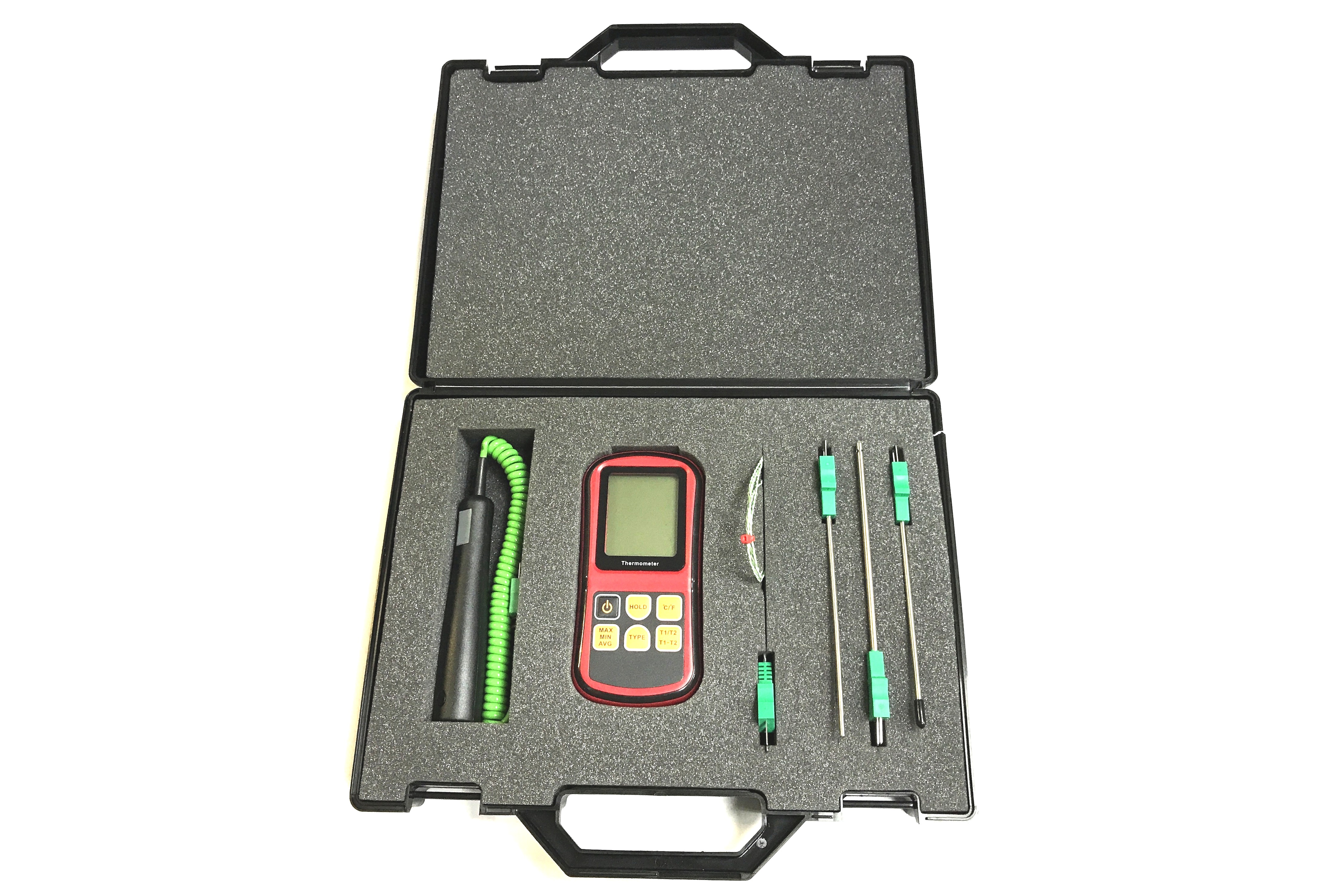

Thermometer Kits with Meter
Thermometer Kits with Meter. Products include the HVAC Standard and PRO kits, Type K general purpose thermocouple kit and two multi-purpose kits with optional moulded on probes or hand held temperature probes, Catering Kit with High Accuracy Chef Thermometer and optional Type T probes, Legionella Kit with integral timer, probe and moulded-on thermocouple. Alos, the Meltflow Index Testing Kit and ISO17025 System Calibration Certificate.

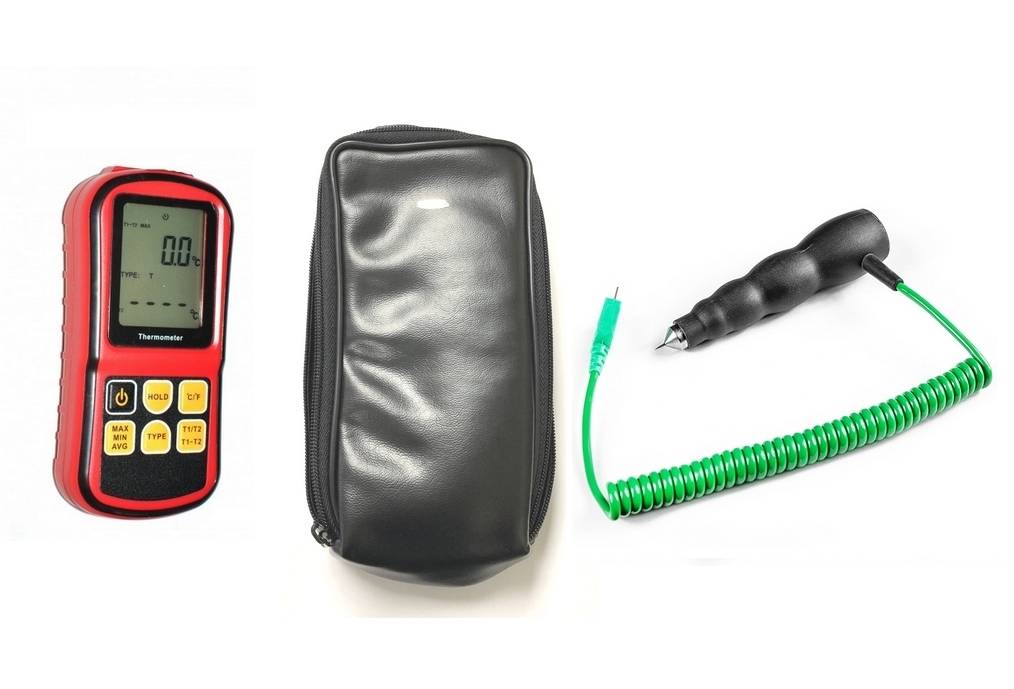

Motor Sport Racing Kits & Sensors
A new range of motor sport racing kits & sensors consisting of probes, digital meter and case. Kits available from 'budget' with a fixed tyre probe and great value hand held meter, to 'professional' with an adjustable tyre probe and premium digital meter. Hand Held Digital Infrared Thermometers also available.

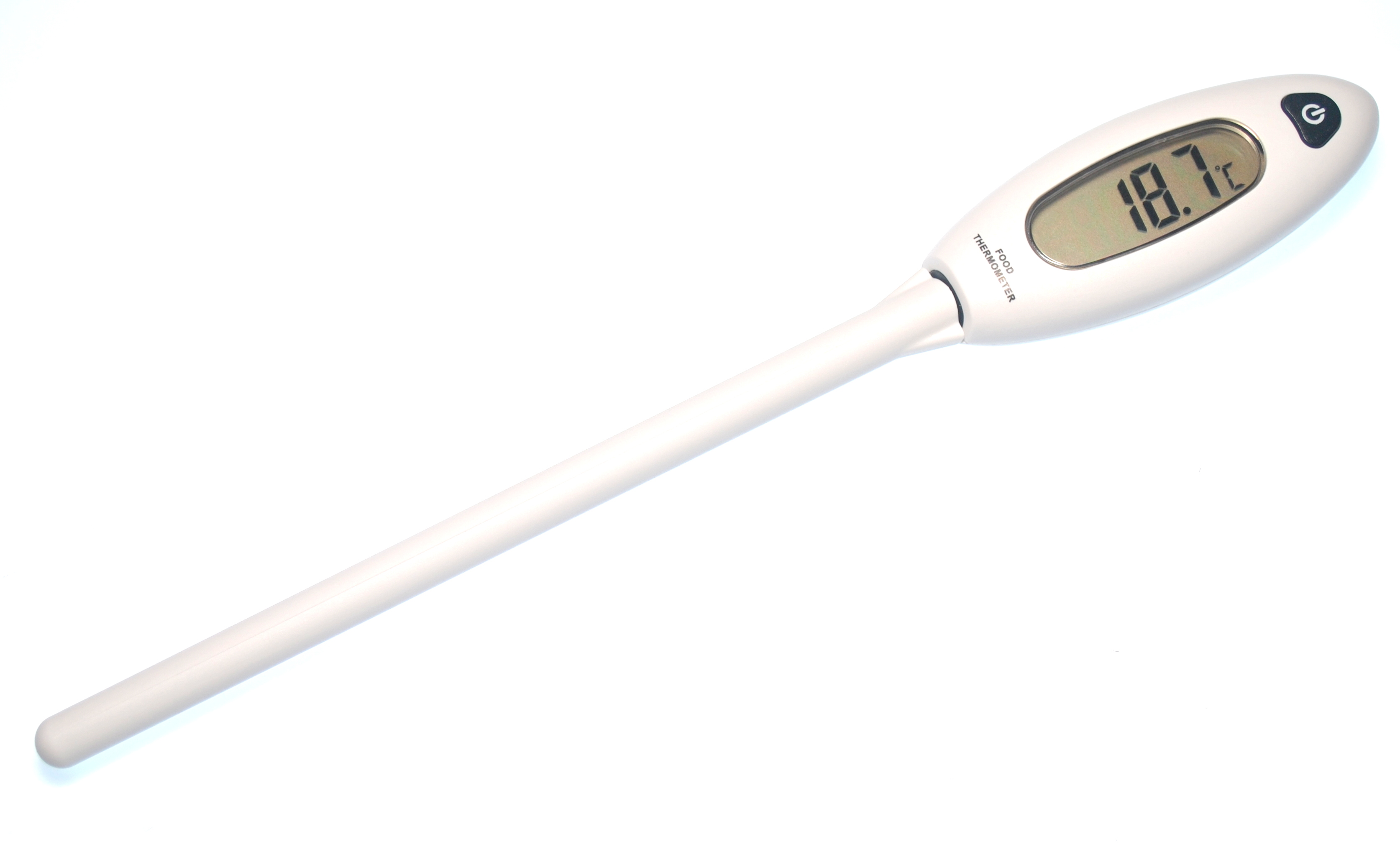

Handheld Thermometers
Convenient great value hand held thermometers including the GM700 & GM300 Infrared Thermometers, Food Thermometers, Oven, Dishwasher and Pen Type Thermometers

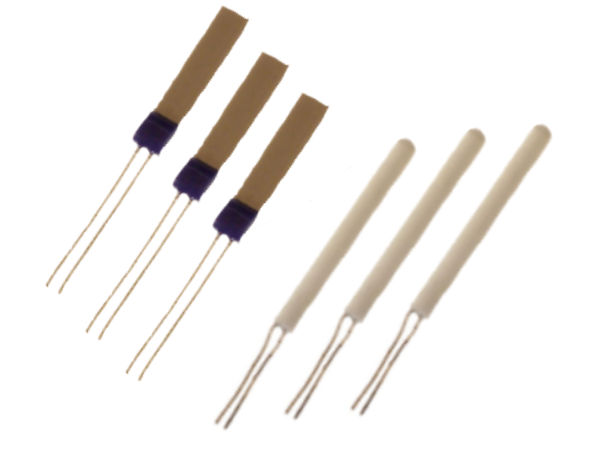

RTD Detectors
A selection of Flat Film RTD Detectors; 100, 500 & 1000 Ohm in class A, B or 1/3 DIN A selection of 100 Ohm RTD Wire Wound Detectors, single and dual element types available in class A, B or 1/10 DINCant find what your looking for?
Please complete our custom configurator forms and send us your specific requirements and build your own sensor.
We are specialists in the design and manufacture of custom-built temperature sensors. Quality and Service are key elements in the continued growth of Labfacility; technical support for both sensing and instrumentation is always freely available from our experienced technical sales teams.
Comparison of Sensor Types
| Thermocouple | Platinum Resistance Thermometer | Thermistor | |
|---|---|---|---|
| Sensor | Thermoelement, two dissimilar metals/alloys |
Platinum-wire wound or flat-film resistor | Ceramic (metal oxides) |
| Accuracy (typical values) | 0.5 to 5.0°C | 0.1 to 1.0°C | 0.1 to 1.5°C |
| Long term Stability | Variable, Prone to ageing | Excellent | Good |
| Temperature range | -200 to1750°C | -200 to 650°C | -100 to 300°C |
| Thermal response | Sheathed – slow Exposed tip – fast 0.1 to 10 secs typical | Wirewound – slow Film – faster 1-50 secs typical |
generally fast 0.05 to 2.5 secs typical |
| Excitation | None | Constant current required | None |
| Characteristic | Thermovoltage | PTC resistance | NTC resistance (some are PTC) |
| Linearity | Most types non-linear | Fairly linear | Exponential |
| Lead resistance effect | Short cable runs satisfactory | 3 & 4 wire – low. 2 wire – high | Low |
| Electrical “pick-up” | susceptible | Rarely susceptible | Not susceptible |
| Interface | Potentiometric input. Cold junction compensation required | Bridge 2,3 or 4 wire |
2 wire resistance |
| Vibration effects/ shock | Mineral insulated types suitable | wirewound – not suitable. Film – good | Suitable |
| Output/ characteristic | From 10µV/°C to to 40µV/°C depending on type |
approx. 0.4 W/°C | -4% / °C |
| Extension Leads | Compensating cable | Copper | Copper |
| Cost | Relatively low cost |
Wirewound – more expensive Film – cheaper |
Inexpensive to moderate |
Comments and values shown in this chart are generalised and nominal. They are not intended to be definitive but are stated for general guidance.
