Handheld Spring Loaded Thermocouple with Copper Disc Tip - Type K

Skip to the beginning of the images gallery

Change Currency

SKU

XE-3816-001

£54.40 £45.33

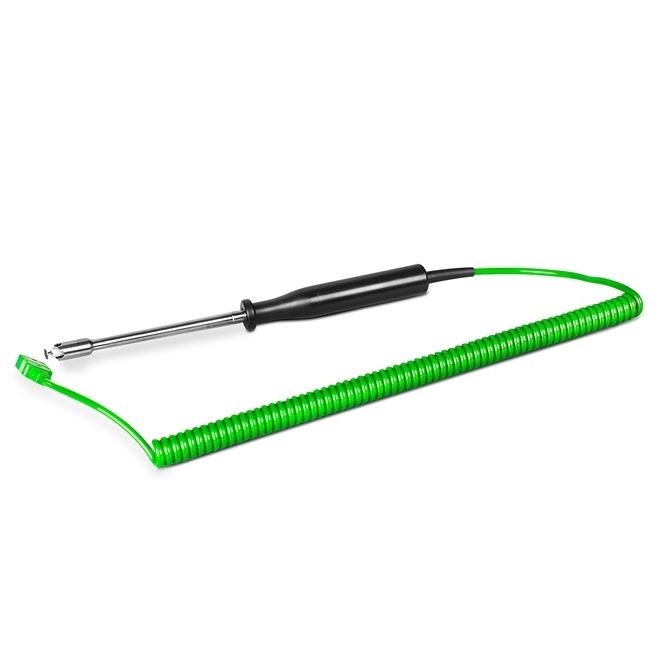

Stainless steel sheath with a moulded handle and 2 metres of coiled extension cable terminated in a miniature thermocouple plug.

Optional GM1312 General Purpose Digital Thermometer (K,J,T,E,N,R/S)

K, J, T, E, N, R/S modes.
2 temperature modes: ° C, ° F and
One push button to switch between ° F/° C mode as well to switch between MAX/MIN/AVG
2 temperature channels: T1 / T2
Differential temperature measurement
Overload display alert if input exceeds the selected measurement range
Comes with rubber holster that protects the meter from impact Portable and compact design
Resolution: 0.1° C or 0.1° F. Accuracy: ± 0.4° C ± 1%
Auto Power Shut Off
Switchable ° C or ° F or K
Ambient Operating Range: 0-40° C (32-104° F)
Relative Humidity: 0-70% RH
Power supply: Supplied with 3 x AAA Battery

General Description	Surface temperature spring loaded thermocouple with copper disc tip
Thermocouple Type	K
Calibration	IEC
Cable Length	2m Fully Extended
Cable Type	Retractable Curly Thermocouple Lead - Polyurethane outer
Cable Termination	Miniature Plug
Max. Temperature	+600°C
Dimensions	Probe 4.7mmØ x 63mm long stem, Ø8 x 17mm tip with Ø4.5mm copper disc
Tip	Copper disc tip
