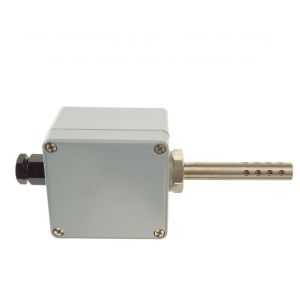

Pt100 Outdoor / Cold Store Temperature Sensors - Type PRT

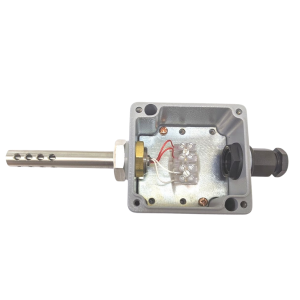

Single 4 wire element, allowing connection to any Pt100 2, 3 or 4 wire instrument.

Duplex 2 x 4 wire with two independent sensing elements, allowing connection to two measurement or control devices; alternatively one sensor may be used as a primary and the other as a back up, eliminating the need to remove and replace the probe if one of the sensors should fail – can be connected to any Pt100 2, 3 or 4 wire instrument.

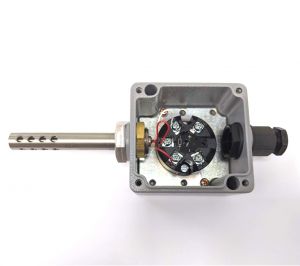

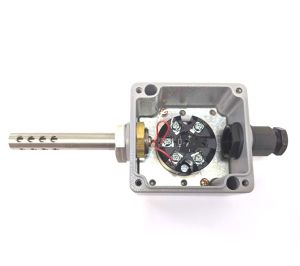

Includes integral transmitter which converts the Pt100 sensor output to a standard industrial 4 to 20mA output signal over pre-configured range of -50 to +150°C. It is also configurable by the user allowing range and burnout direction to be changed. It also allows the user to trim output current at either 4 or 20mA.
