Industrial Temperature Head Sensors

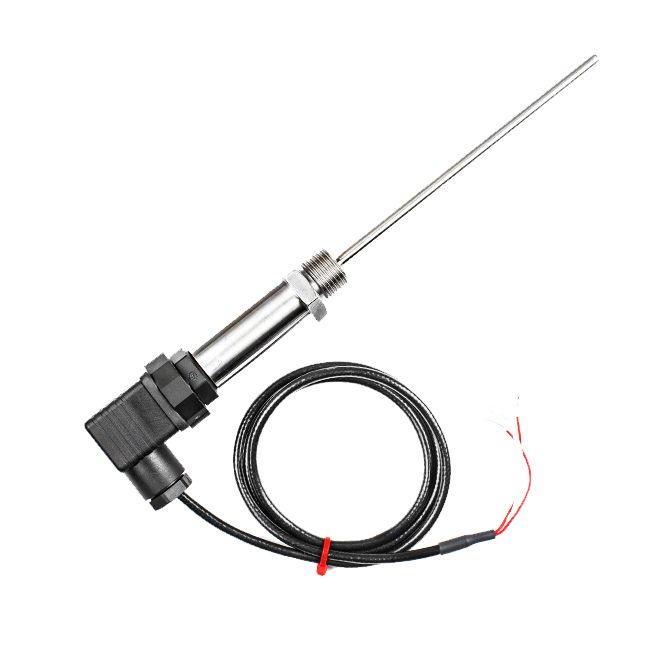

RTD Temperature Sensor with Integral Transmitter & Hirschmann Connector
A cost effective 6mm diameter Pt100 sensor and transmitter assembly housed in a 316 Stainless Steel body with 1/2" BSP process connection and fitted din connector with connection lead.
Available variations
50mm, 75mm, 100mm, 150mm, 200mm, 300mm Probe lengths

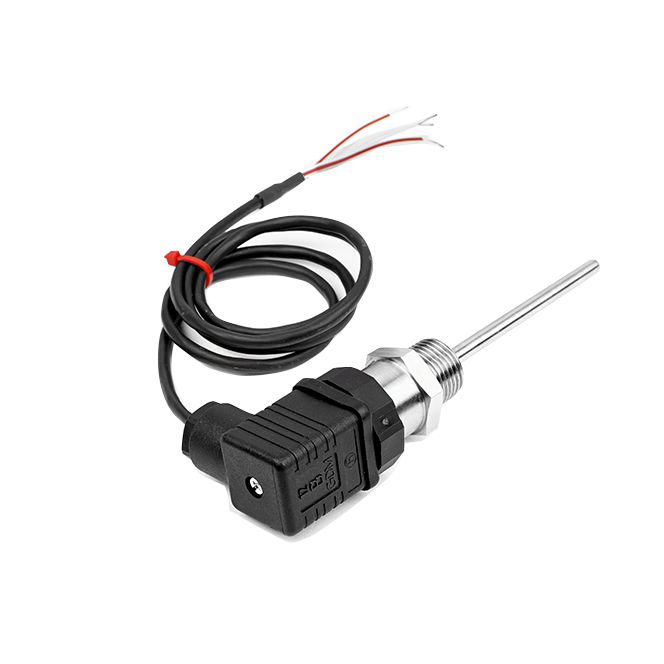

RTD Temperature Sensor with Hirschmann Connector
A cost effective 6mm diameter Pt100 sensor assembly housed in a 316 Stainless Steel body with 1/2" BSP process connection and fitted din connector with connection lead.
Available variations
50mm, 75mm, 100mm, 150mm, 200mm, 300mm Probe lengths

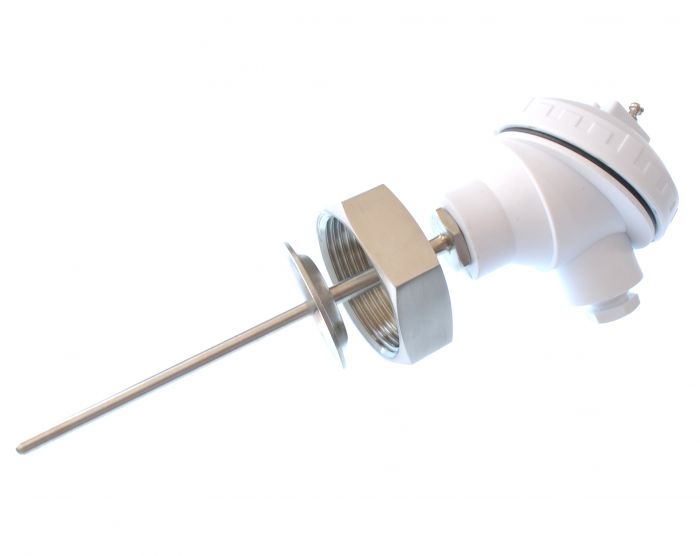

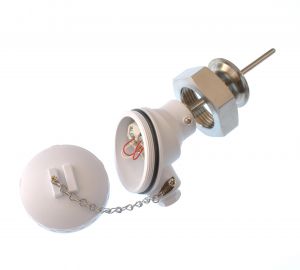

Hygienic Pt100 Resistance Thermometer, 1.5'' RJT Style Fitting
Ideal for hygienic processes including dairy, brewery and pharmaceutical applications.
Available variations
With our without fitted transmitter
3-wire: 6.0mm x 75mm, 6.0mm x 125mm
4-wire: 6.0mm x 75mm, 6.0mm x 125mm

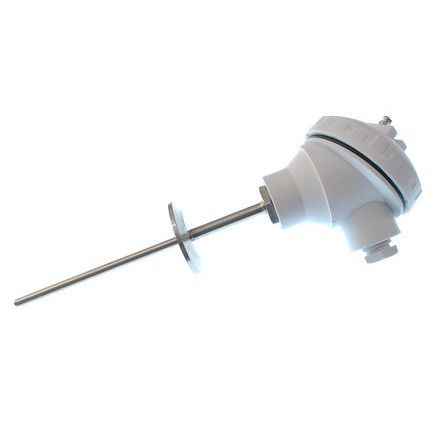

Hygienic Pt100 Resistance Thermometer, 1.5'' Tri-Clamp Fitting
Ideal for hygienic processes including dairy, brewery and pharmaceutical applications.
Available variations
With our without fitted transmitter
3-wire: 6.0mm x 75mm, 6.0mm x 125mm
4-wire: 6.0mm x 75mm, 6.0mm x 125mm

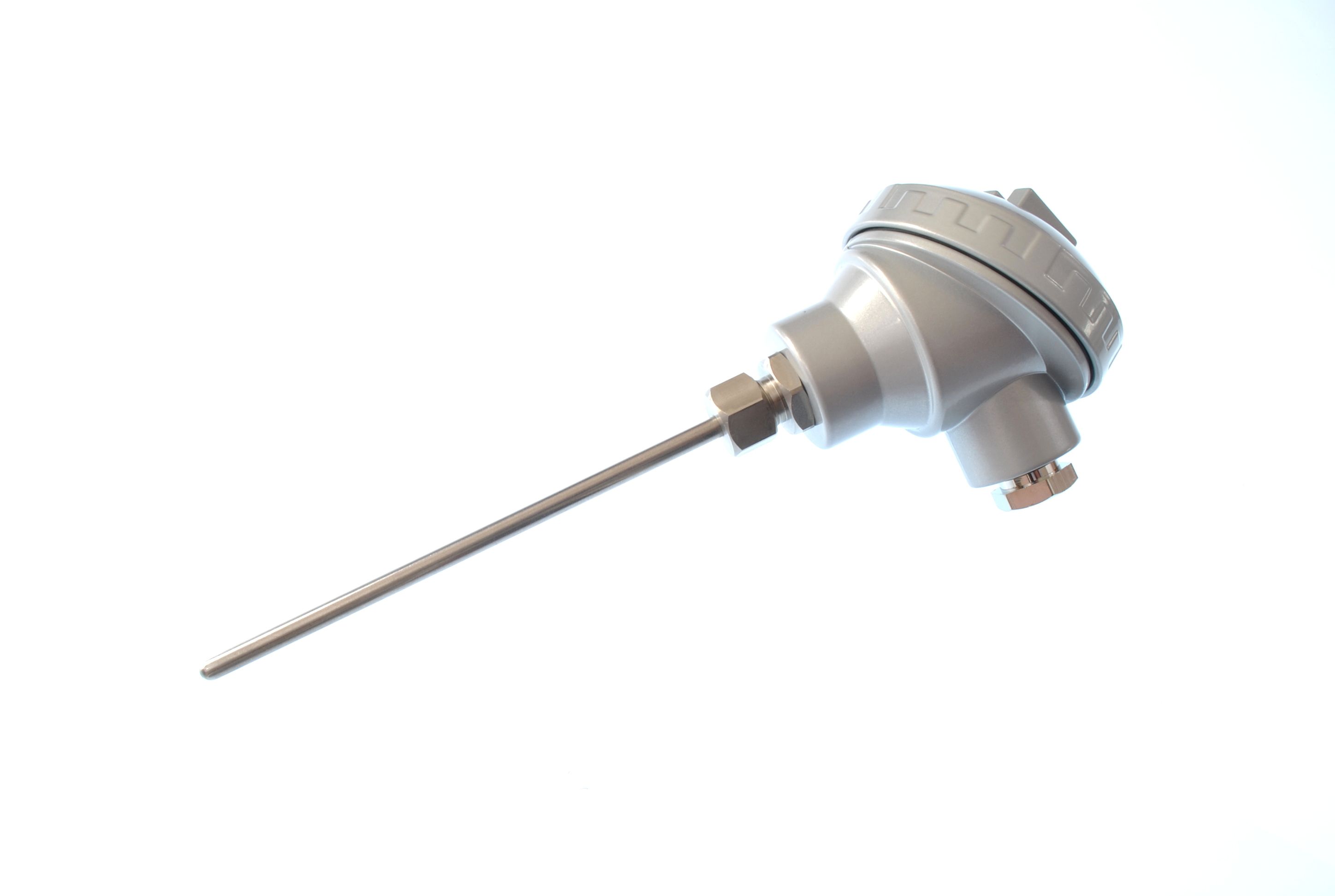

Pt100 3-wire class B Resistance Thermometer, KNE Head with Transmitter
Pt100 (100 Ohms @ 0°C) to IEC 751, Class B, 3 wire. Made from 316 Stainless Steel.
Available variations
0-100°C, 0-200°C, 0-400°C Transmitter Range.

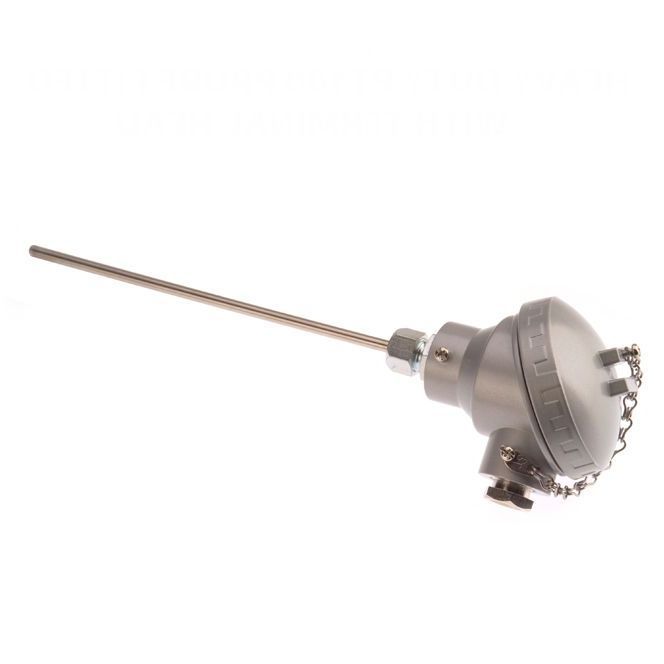

Pt100 Duplex 2 x 3 wire class A Resistance Thermometer, KNE Head
Sensor type: 2 x Pt100 (100 Ohms @ 0°C) to IEC 751, Class A.
Available variations
100mm, 150mm, 200mm, 250mm Lengths

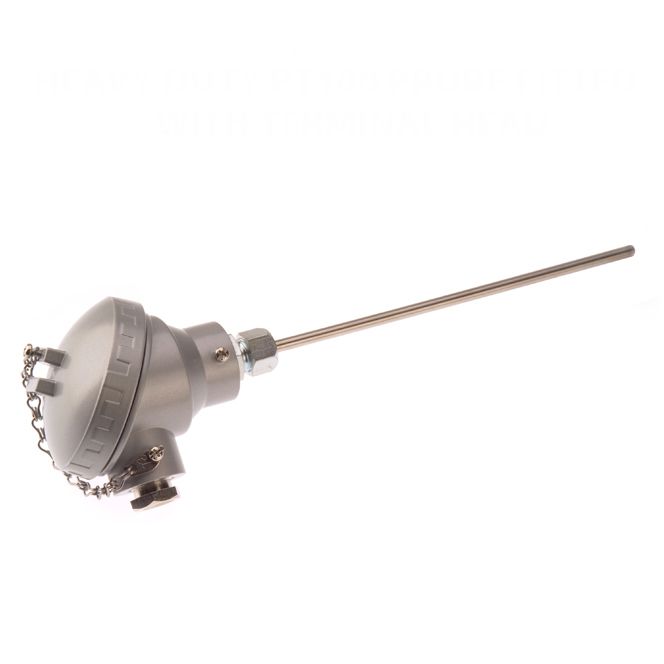

Pt100 4 wire class B Resistance Thermometer, KNE Head
Pt100 (100 Ohms @ 0°C) to IEC 751, Class B, 4 wire. With 6mm probe diameter.
Available variations
200mm, 400mm, 600mm Probe Lengths

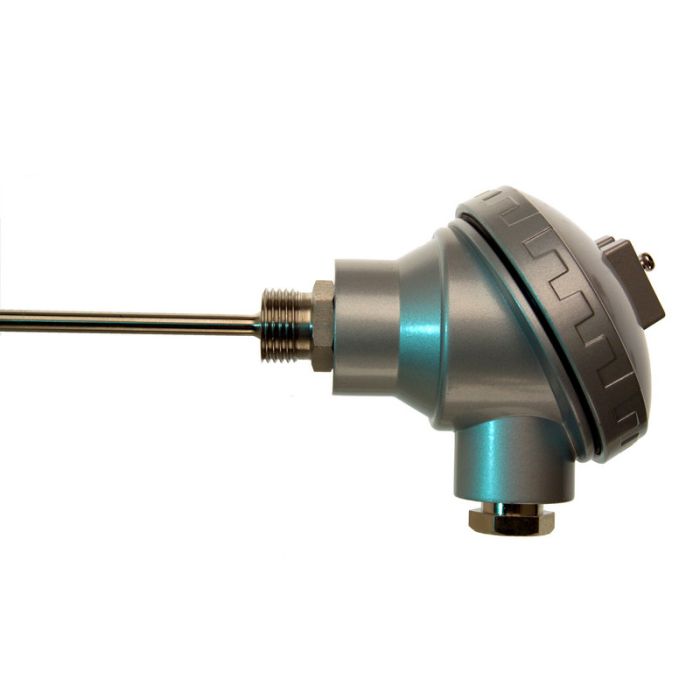

Pt100 4 wire class B Resistance Thermometer with 1/2"BSP Process Connection, KNE Head
Pt100 (100 Ohms @ 0°C) to IEC 751, Class B, 4 wire. With 6.0mm probe diameter.
Available variations
150mm, 250mm, 500mm Probe Lenghts

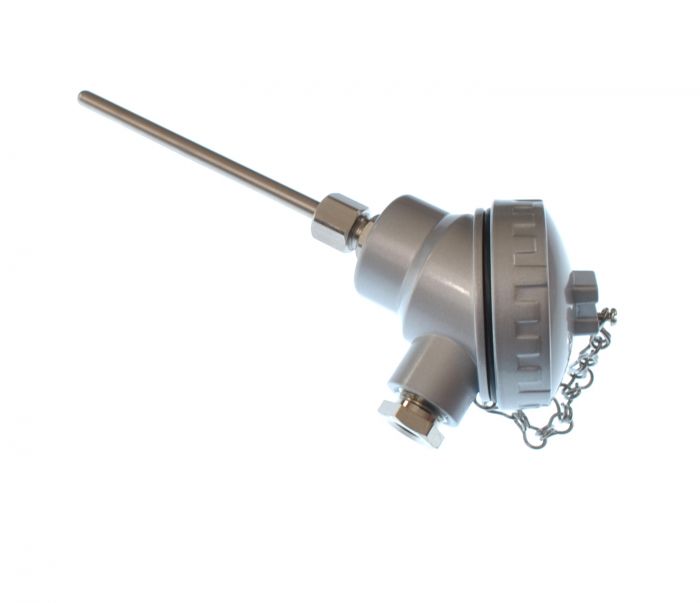

Pt100 4 wire class B Resistance Thermometer, Compact KNS Head
Pt100 (100 Ohms @ 0°C) to IEC 751, Class B, 4 wire. With 6.0mm probe diameter.
Available variations
100mm, 150mm, 200mm, 250mm, 300mm Probe Lengths

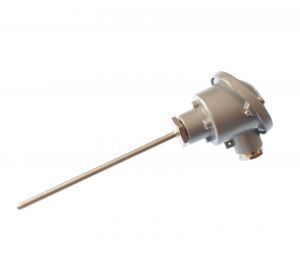

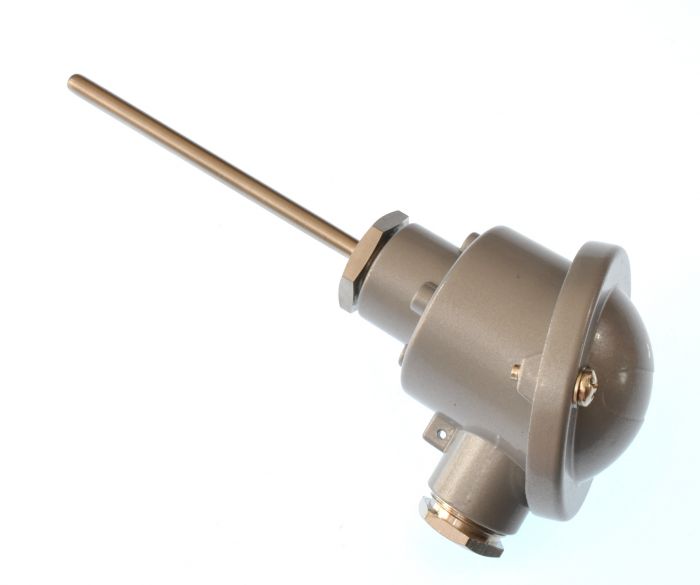

Pt100 4 wire class B Resistance Thermometer, DIN B Head
Pt100 (100 Ohms @ 0°C) to IEC 751, Class B, 4 wire, Stainless steel plug (no thread). With 6.0mm probe diameter.
Available variations
100mm, 150mm, 200mm, 250mm, 300mm, 500mm Probe Lengths

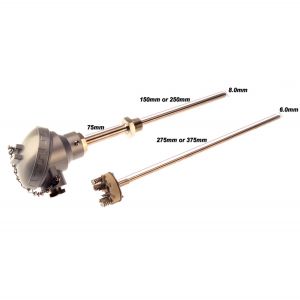

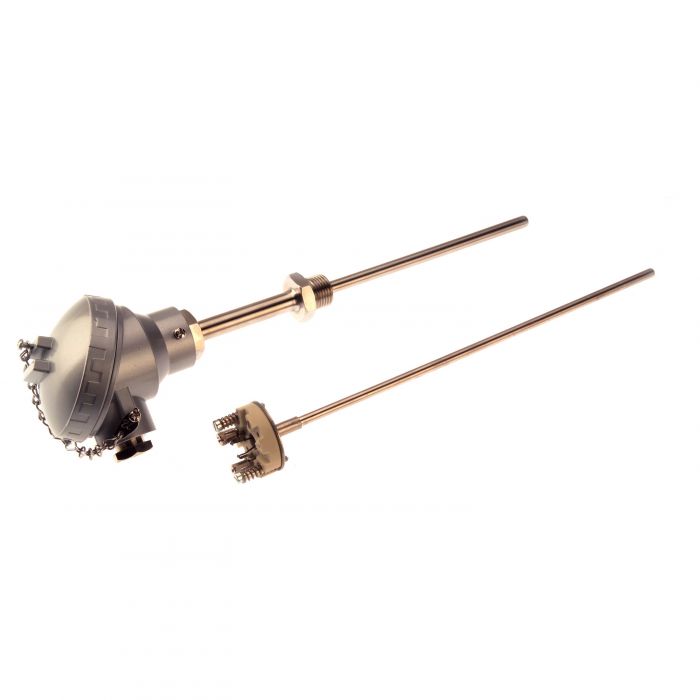

Pt100 4 wire class B Resistance Thermometer, DIN B Head with 100mm Probe Length and Insert
6.0mm diameter 316 stainless steel terminated with spring loaded ceramic connection block. Choose probe and insert size.
Available variations
150mm x 8.0mm probe with 275mm x 6.0mm insert
250mm x 8.0mm probe with 375mm x 6.0mm insert
Replacement insert only

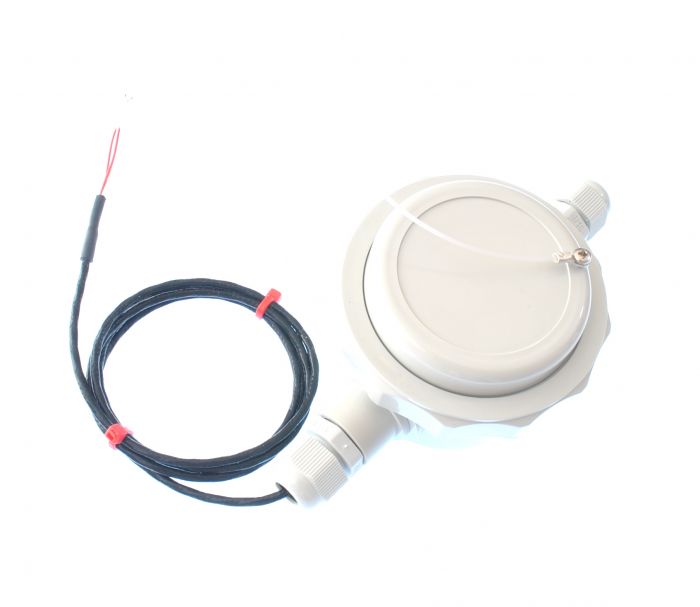

4-20mA Remote Wall Mounted Housing, Pt100 input 1 metre lead RTD / PRT
Housing moulded in general purpose ABS, the external fixing points provide a simple and rapid means of mounting sensors directly onto ducts, dispensing with the need for separate mounting plates.
Available variations
F/G+SSOB cable insulation with 0°C to 400°C transmitter range
PFA Teflon cable insulation with -50°C to 150°C transmitter range

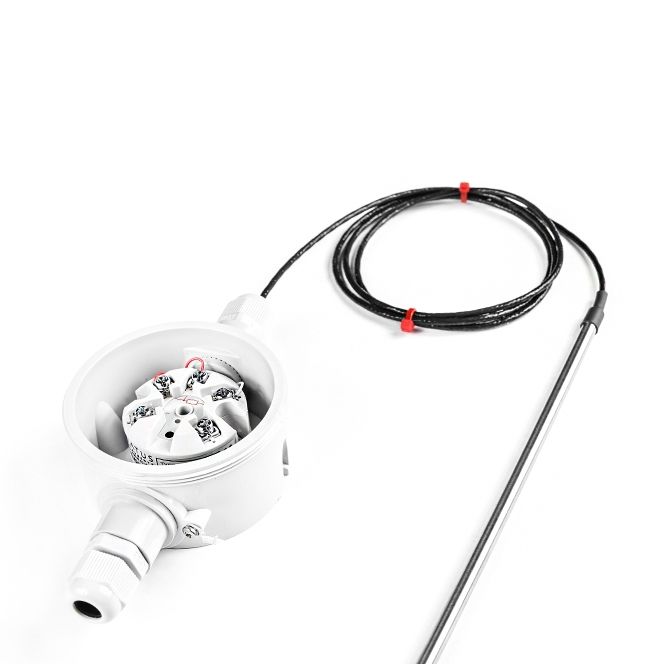

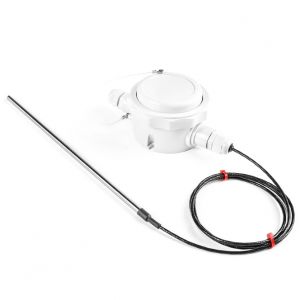

4-20mA remote wall mounted housing, Pt100 input with PFA or SSOB cable & PRT sensor
Housing moulded in general purpose ABS, the external fixing points provide a simple and rapid means of mounting sensors directly onto ducts, dispensing with the need for separate mounting plates.
Available variations
7/0.2mm 3-Core PFA screened cable or 7/0.2mm 3-Core FG+SSOB cable
1M or 2M Lengths
Cant find what your looking for?
Please complete our custom configurator forms and send us your specific requirements and build your own sensor.
We are specialists in the design and manufacture of custom-built temperature sensors. Quality and Service are key elements in the continued growth of Labfacility; technical support for both sensing and instrumentation is always freely available from our experienced technical sales teams.
