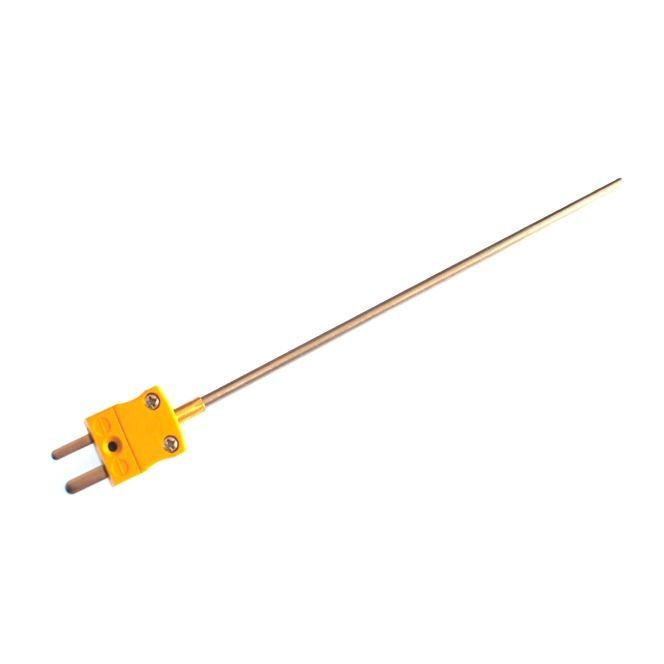

0.25mm Diameter Fast Response Mineral Insulated Thermocouple with ANSI Miniature Plug - Type K
Change Currency
SKU
XE-0809
£29.82
£24.85
Please use our custom sensor forms to submit your requirements for various lengths of MI, as all terminated with an IEC miniature plug (220°C) for quick, simple connection.
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. |
|---|
Specifications
| General Description | Highly flexible, sheath can be bent/formed to suit many applications and processes |
|---|---|
| Sensor Type | Type K ANSI MB STYLE probes 0.25mm |
| Thermocouple Junction | Single element, junction insulated or grounded |
| Probe Length | 100mm / 150mm / 250mm |
| Sheath Material | Stainless steel 316 sheath |
| Termination Type | Fitted Miniature Plug Type ANSI |
| Range | -40 to +260°C |
| Important Information | A 1%+ Length Tolerance applies |
