0.75mm Diameter with threaded pot & IEC tails – Insulated or Grounded
Change Currency
SKU
XE-0188
£31.27
£26.06

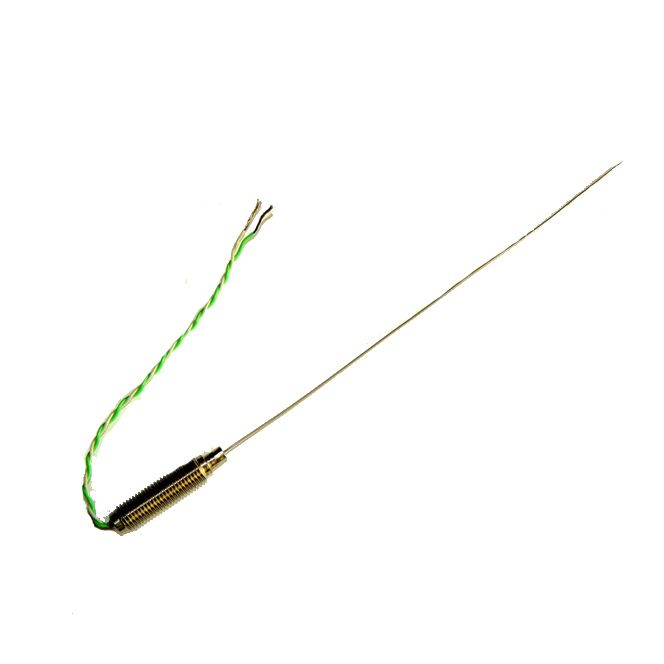

Type K with threaded pot & tails in 316 stainless steel
If you require larger quantities, please email sales@labfacility.com or telephone our sales line 01243 871280.
Need Your Temperature Sensor calibrated? |
Traceable to ISO17025 (UKAS) calibration standards, Labfacility offer a choice of a 3 or 5 point traceable calibration using our in-house calibration facility. Please be aware that if you add a calibration option to your order you will be contacted regarding delivery information. . |
---|
Specifications
General Description | Type K with threaded pot & tails in either 316 stainless steel. |
---|---|
Sensor Type | Mineral Insulated |
Thermocouple Type | K |
Element/hot junction | Single element, junction insulated or grounded from sheath |
Probe Diameter | 0.75mm |
Probe Length | 50, 100, 150, 250mm |
Sheath Material | 316 stainless steel |
Pot Type | M8 x 1.0mm fine pitch threaded pot seal (Max Temp 200°C) |
Cable Length | 100mm |
Cable Type | PFA insulated twin twisted IEC (Temp -75 to +250°C) |
Core / Strands | 7/0.2mm |
Termination Type | Bare Tails |
Max. Temperature | +750°C |
Min. Temperature | -100°C |
Tolerance | Class 1 |
Standards Met | In accordance with IEC 584 |
