Fabricated and Specialist Thermocouples JIS
A selction of fabricated and specialist thermocouples in JIS calibration.

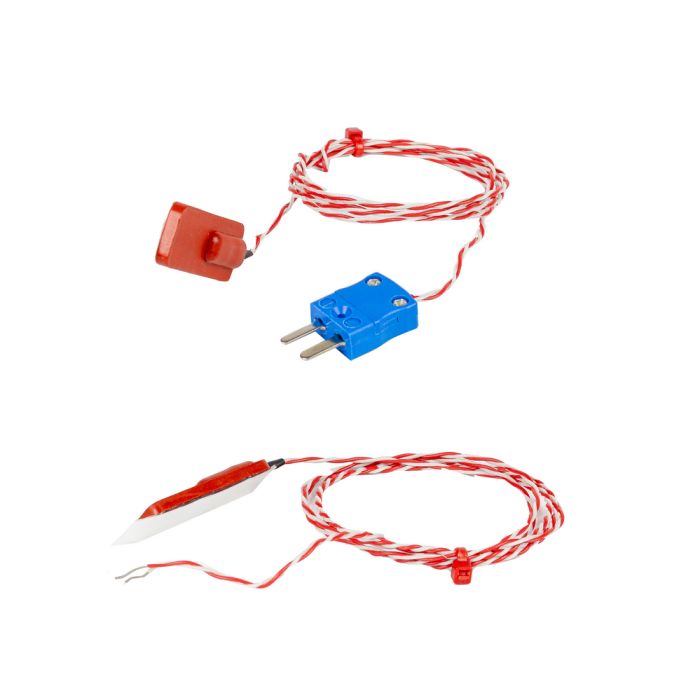

Silicone Rubber Patch Thermocouple, PFA Twin Twisted
Resistant to many oils & chemicals. Thermocouple junction encapsulated in a silicone rubber patch.
Available variations
JIS Type K
Bare Tails or Miniature Plug termination
1,2 or 5 metre lengths

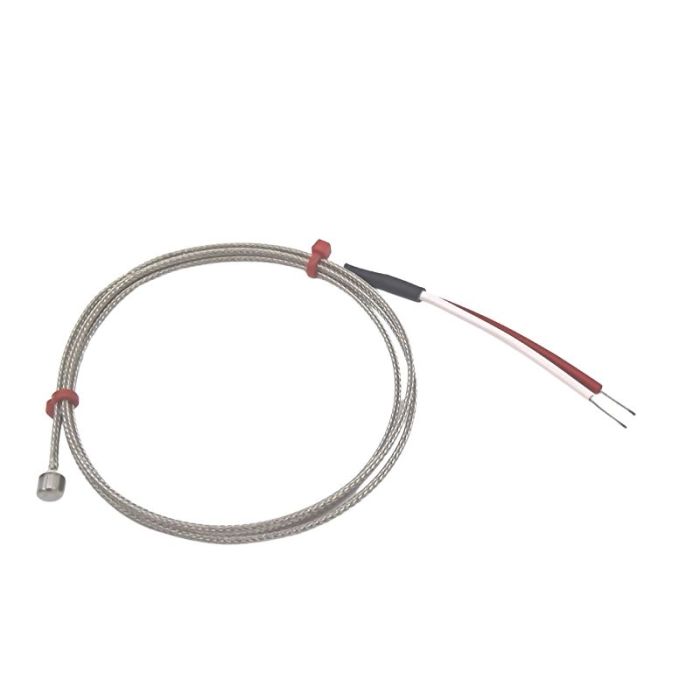

Fine Wire Disc Thermocouple, PFA Insulated Twisted Wire
Exposed junction thermocouple with Copper Disc brazed at tip.
Available variations
JIS Type K
Bare Tails or Miniature Plug termination
1,2 or 5 metre lengths

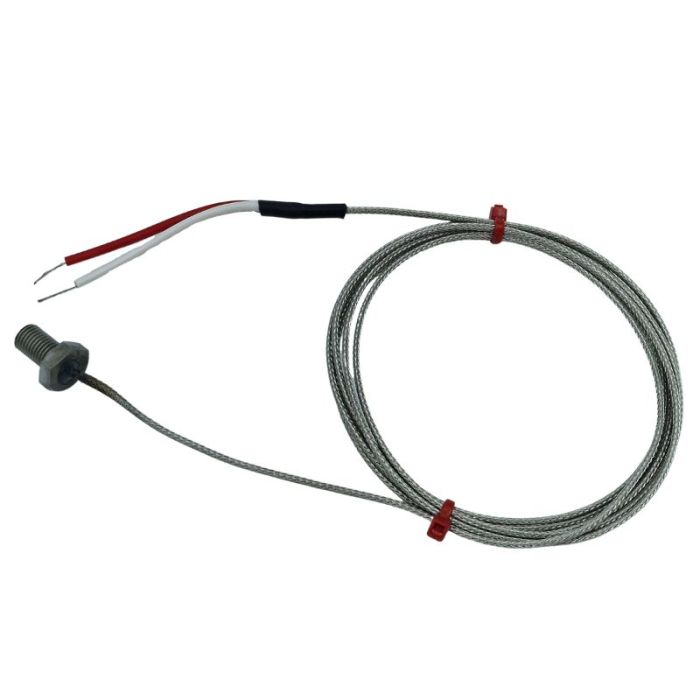

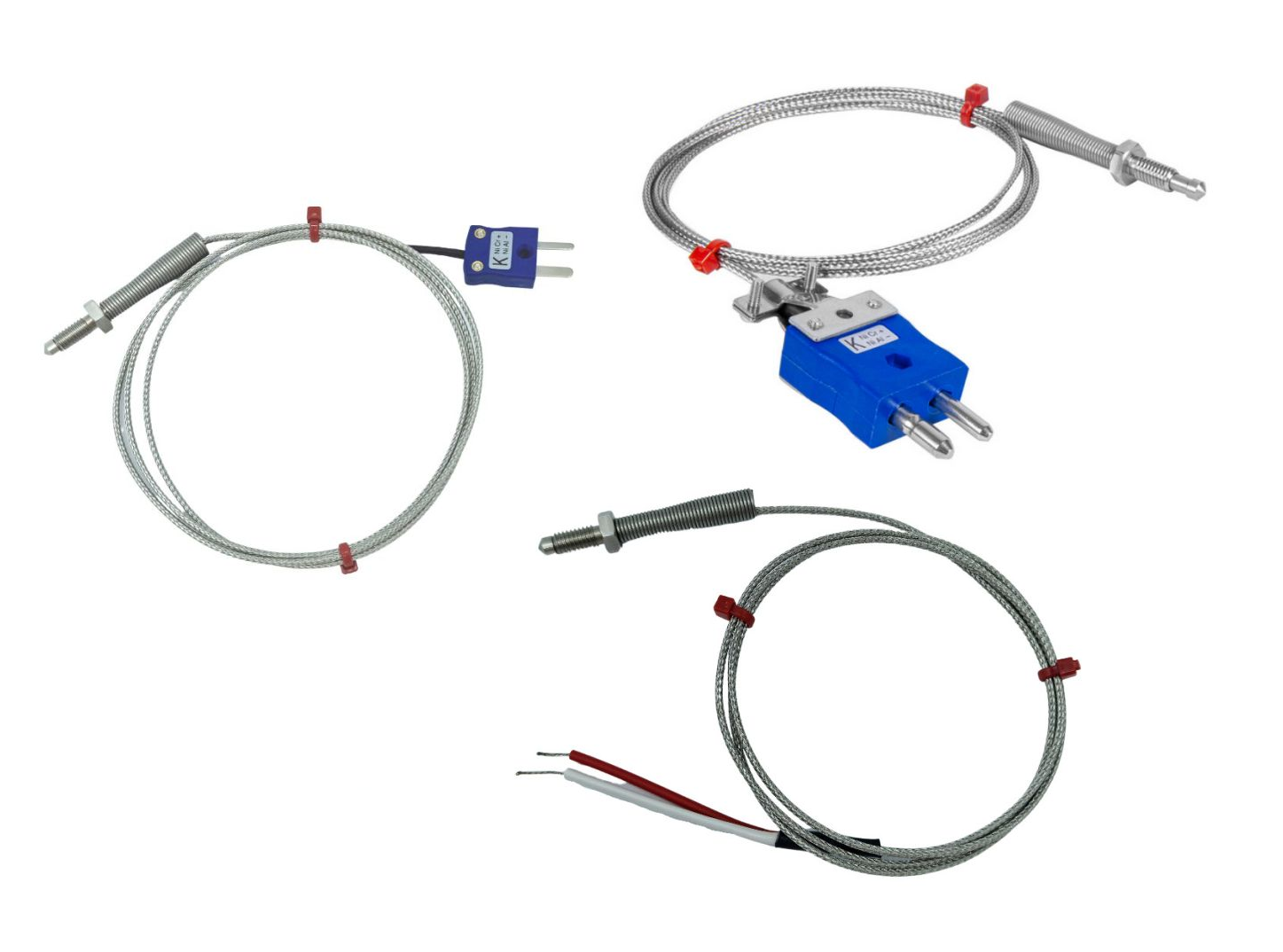

Bolt Thermocouple, Glassfibre Stainless Steel Over Braided Cable
Bolt sensors are generally screwed into the surface which normally increases the speed of response and sensitivity of the measurement. Suitable for use up to +250°C.
Available variations
Type K JIS
M8x1mm, M10x1mm, M12x1mm Thread Pitch
13mm or 25mm Bolt Length
Thermocouple Brake Pad Temperature Sensors
These thermocouple sensors are to be used to monitor the temperature of brake pads up to +400°C. They are designed to be embedded into the pads.
Available variations
JIS Type K
3.2mm, 4.0mm, 6.0mm probe diameter

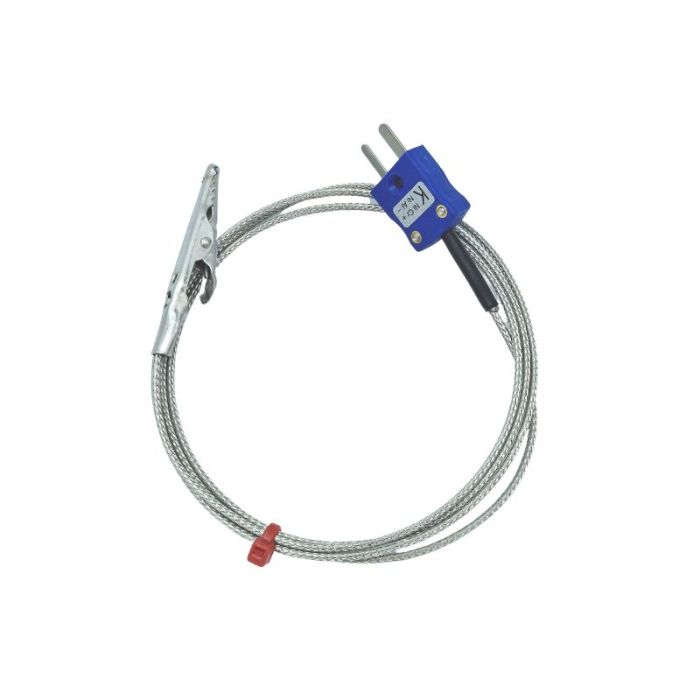

Crocodile Clip Thermocouple with Glassfibre Stainless Steel Overbraided Cable
Grounded measuring junction, Stainless steel over-braided PFA Teflon® cable.
Available variations
Type K JIS
1 or 3 metre lengths

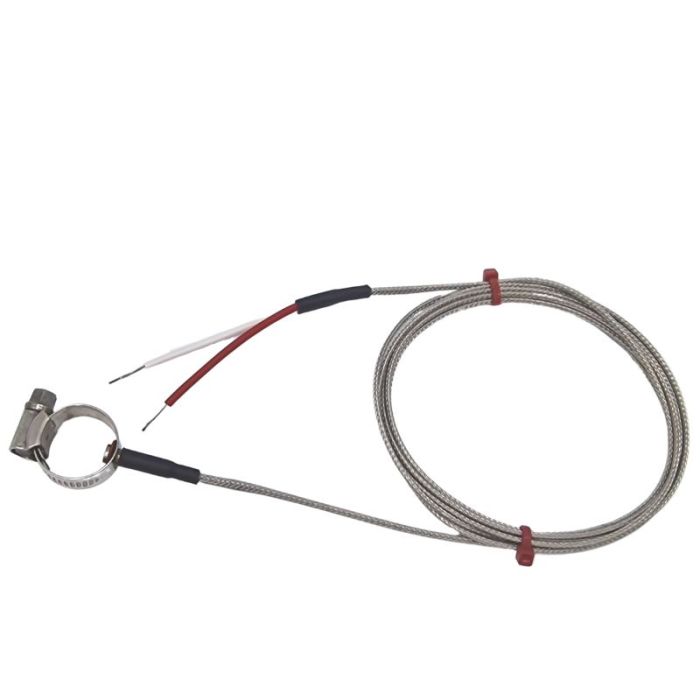

Pipe Surface Thermocouple, Glassfibre stainless steel overbraid
Stainless steel pipe clamp sensor with adjustable diameter. Grounded tip for fast response.
Available variations
Type K JIS
To fit probe diameters: 13-20mm, 22-30mm, 30-45mm and 40-55mm

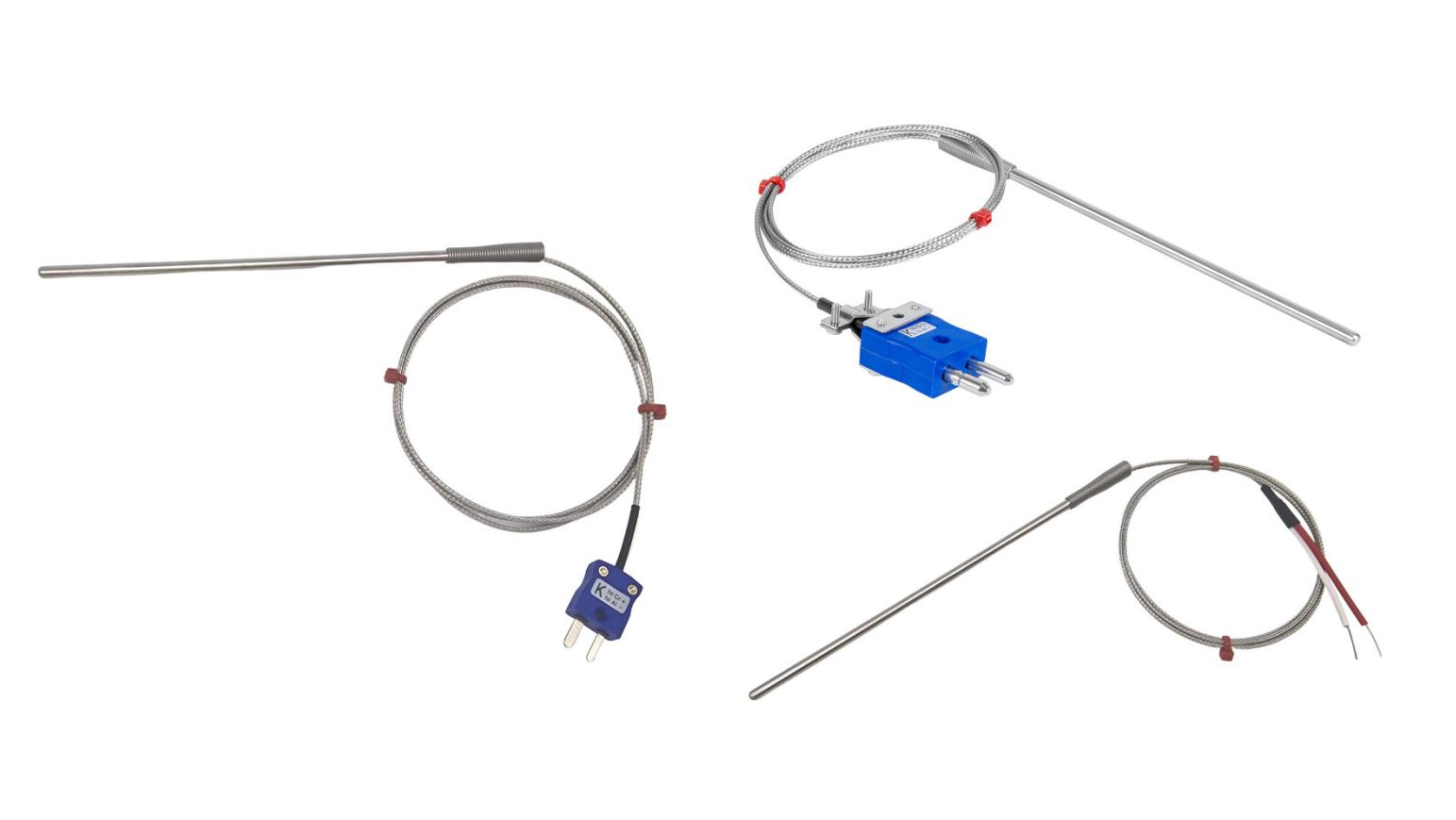

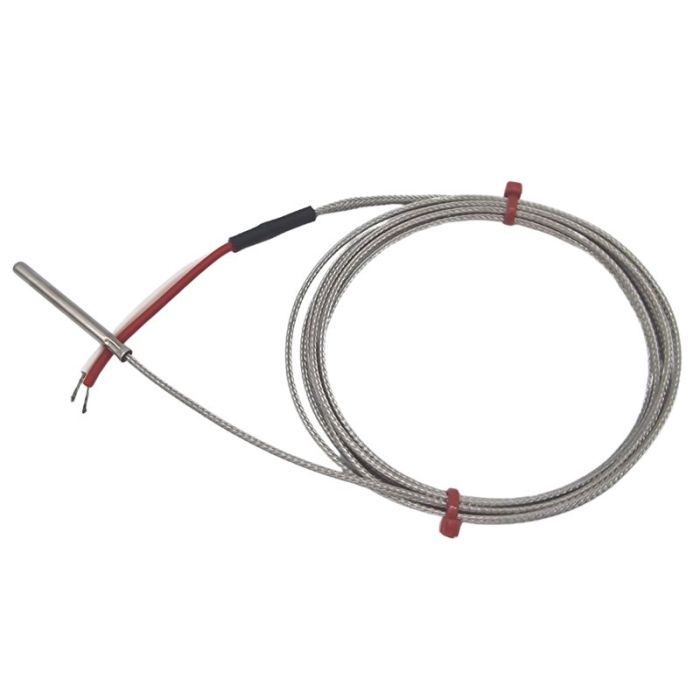

Fabricated Grounded Thermocouple in Stainless Steel Tube, Glassfibre stainless steel Overbraided cable
316 stainless steel tube in various sizes. Grounded at tip for fast response.
Available variations
Type K JIS
3.18mm, 4.0mm, 4.76mm diameter
13mm, 25mm, 40mm, 75mm, 100mm lengths

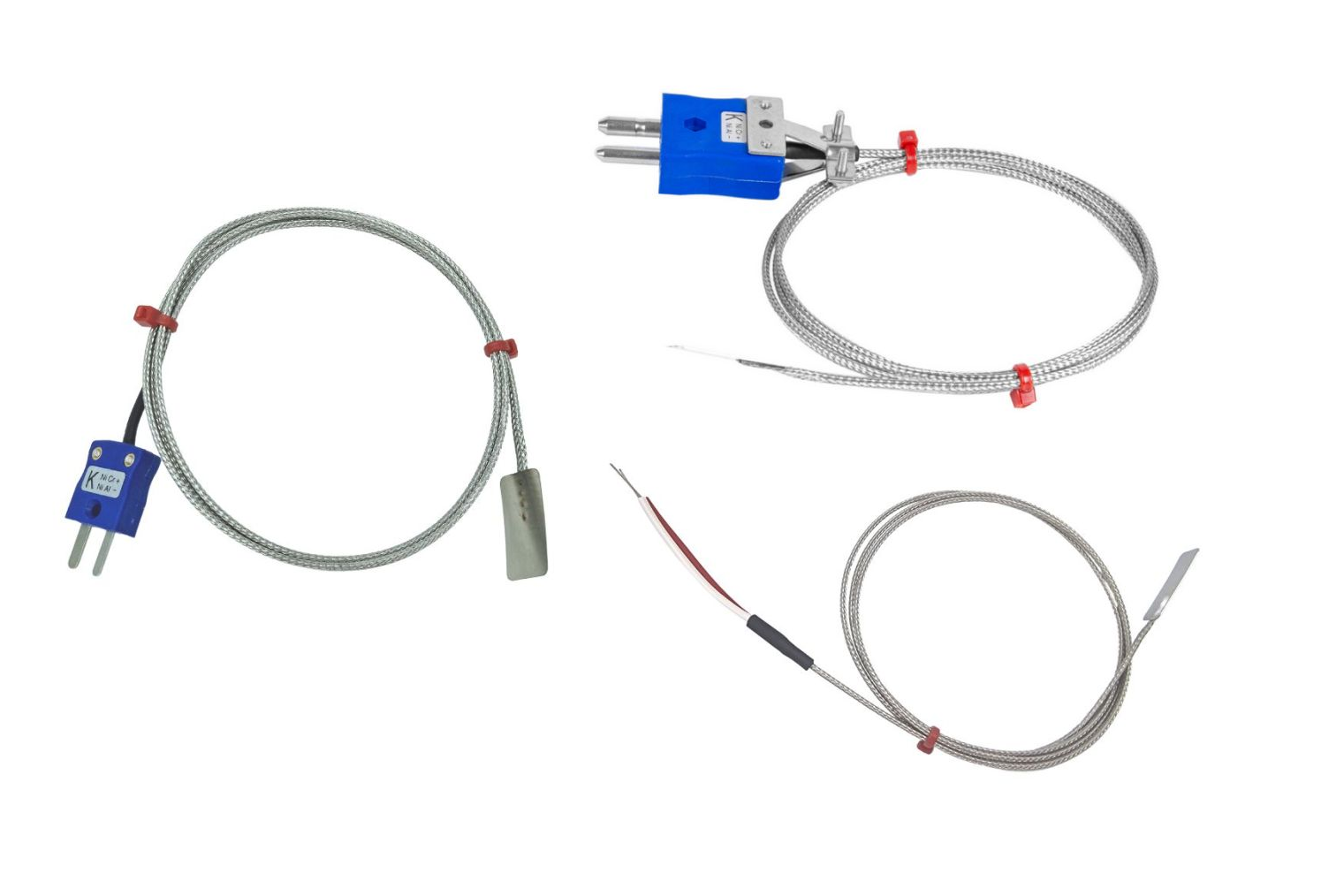

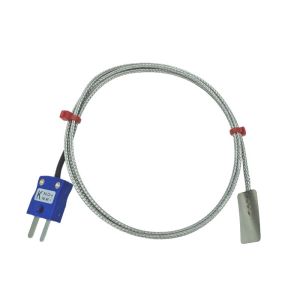

Leaf Thermocouple, Glassfibre insulated Cable with Stainless Steel Over-Braid
Thermocouple mounted on a stainless steel shim. Junction grounded at tip for fast response.
Available variations
Type K JIS
Miniature plug, Standard plug or Bare Tails Termination
1m, 2m, 3m, 5m Lengths

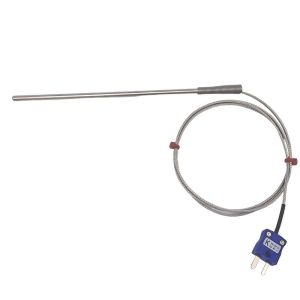

General Purpose Thermocouple Probe, Glassfibre insulated Cable with Stainless Steel Over-Braid
Rugged thermocouple with stainless steel sheath. Junction hot grounded for fast response.
Available variations
Type K JIS
Miniature plug, Standard plug or Bare Tails Termination
1m, 2m Lengths

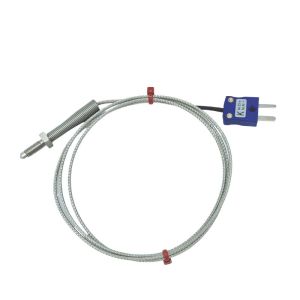

Nozzle Thermocouple, Glassfibre insulated Cable with Stainless Steel Over-Braid
Thermocouple housed in a stainless steel threaded bolt. Grounded hot junction for fast response, M6x1mm thread.
Available variations
Type K JIS
Miniature plug, Standard plug or Bare Tails Termination
1m, 2m, 5m Lengths

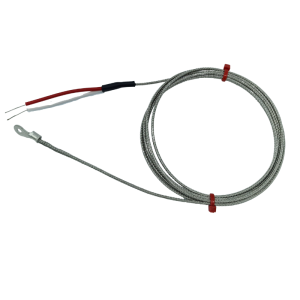

Washer Thermocouple, Glassfibre insulated Cable with Stainless Steel Over-Braid
Thermocouple housed in a washer eyelet. Grounded tip for quick response.
Available variations
Type K JIS
Standard Plug or Bare Tails Termination
3.5mm, 4.0mm, 5.0mm, 6.0mm, 8.0mm, 10.0mm washer hole sizes

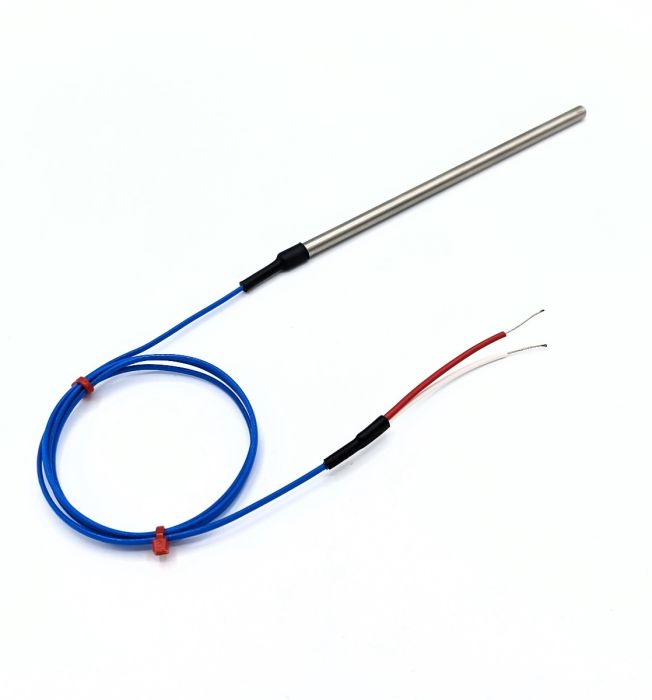

Fabricated Tube Thermocouples with Crimp Seal and Lead Wire
A fabricated JIS thermocouple with 316 stainless steel protection tube and 1 metre PFA flat pair flexible lead wire.
Available variations
Type K JIS
50mm, 100mm, 150mm, 250mm Sheath Lengths
3mm, 4.5mm, 6.0mm Sheath Diameters
