Thermistor Outdoor / Cold Store Temperature Sensors
Change Currency
SKU
XE-9867-001
£123.29
£102.74
- Buy 2 - 14 for £86.09 £71.74 each
- Buy 15+ for £75.34 £62.78 each

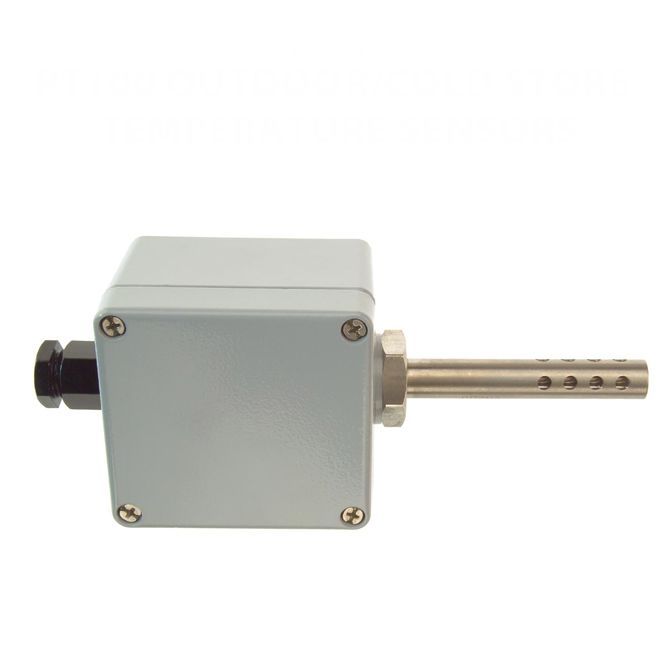

2-wire 10K NTC thermistor in a Weatherproof IP67 rated wall mounting enclosure for accurate outdoor air temperature sensing
Key Features:
- Resistance Value: 10K ohms
- Type: NTC (Negative Temperature Coefficient) thermistor, meaning its resistance decreases as the temperature increases.
- Temperature Range: Capable of accurately measuring temperatures from -50°C to +150°C.
- Wiring: 2-wire configuration for simple connectivity.
- IP Rating: IP67
Applications:
- HVAC Systems: Monitors air temperature to regulate heating, ventilation, and air conditioning systems efficiently.
Specifications
| General Description | Weatherproof IP67 rated wall mounting Thermistor for accurate outdoor air temperature sensing |
|---|---|
| Sensor Type | Single Element |
| Thermistor | 10K NTC Thermistor |
| BETA 25/85 | 3977K |
| Sheath Material | Perforated 316 stainless steel probe, 12.7mm x 75mm |
| Core / Strands | 7/0.2mm |
| Cable Termination | Bare Tails |
| Gland | M20 cable entry gland |
| Max. Temperature | +150°C |
| Min. Temperature | -50°C |
| IP Rating | 67 |
| Accuracy | +/- 0.2K (over 0-70°C) |
| Number of Wires | 2 |
